Fermax F-9448 | DUOX Colour VEO-XS Monitor 4.3 Inch

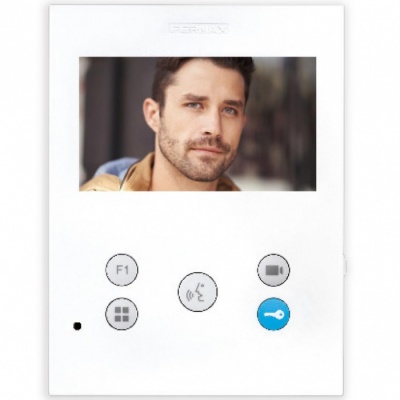

VEO-XS hands-free monitor. It is characterized by its small size and thickness, extra-flat. Thanks to its OSD menu and the layout of the buttons, its interaction with the user is simple and intuitive. Made of high impact ABS plastic. Textured finish for easy cleaning and UV protection to make it more resistant to sunlight.
The VEO-XS features a 4.3 "(16: 9) color widescreen display. Its balanced design with clean lines is distinctive, modern and minimalist. VEO-XS blends into the environment. When a call comes in, the picture appears automatically. When the conversation button is pressed, the conversation with the visitor begins. The image disappears automatically after 90 seconds or when the button is pressed again. To open the door, press the key button.
ACCESSORIES:
CONNECTOR
9447 DUOX PLUS MONITOR CONNECTOR
For mounting the monitor on the wall surface.
REPLACEMENT
3388 UNIVERSAL FRAME 120X240
Extra flat format, made of high impact ABS plastic, it has a fine textured finish. In replacement, it allows to cover the gap left by previous equipment.
Dimensions 120 x 240 x 10 mm.
3389 UNIVERSAL FRAME LARGE 210x240
Dimensions: 210 x 240 x 10 mm
Technical specifications
GENERAL CHARACTERISTICS
Technology: DUOX PLUS (non-polarised 2 wire full digital system)
Audio/Video system: Audio/Video Color
Set-up (Installation): Surface mounted (order connector ref. 9447 separately)
Desktop support: Yes (ref. 9420)
Hands-free communication: Yes
Press-to-talk communication configurable: Yes
Induction loop included: No (order monitor ref. 9458 with induction loop)
Screen dimensions: 4,3” (Panoramic 16:9)
Screen resolution (H x V): 480 x 272
Color of the product: Matt white
Number of pushbuttons: 5
Kind of pushbuttons: Mechanical (silicone)
Number of leds for lighted indications: 3 (red, blue, green with different states)
PROGRAMMING OF THE TERMINAL ADDRESS
From the terminal: From the OSD menu
From the outdoor panel or guard unit: Yes
From the outdoor panel throughout the apartment door bell: Yes
FEATURES
Automatic picture capture when the visitor calls (PHOTOCALLER): Yes (1 photo/call, until 150 photos, 368 x 288 pixels). This feature can be enabled by the user. Disabled by default.
Guard unit call: Yes (by means of the door release button)
Auto-on: Yes (with 3 outdoor panels/cameras)
OSD menu: Yes
Additional function F1: Yes (Button F1 sends a negative and/or command)
Additional function F2: Yes (it only sends command, no negative)
Apartment door bell differentiated from the outdoor panel: Yes
Connection for additional devices (call extension, light/buzzer activator, etc.): Yes (ref. 2040, ref. 2438, ref. 3267)
Additional terminals on the same address: Yes, max. 2 additional terminals (additional power supply can be required)
Doormatic (automatic door release for offices, etc.): Yes (configurable until 12h). Green Led ON.
ADJUSTMENTS
Date and time: Yes
Ring tones selection: Yes (5). Configurable for Block Panel 0, Block Panel 1, General Entrace Panel 0 and Concierge unit.
Call volume control: Yes (10 levels by OSD menu)
Do-not-disturb mode: Yes (by OSD menu) + Red led indication
Audio volume control: Yes (10 levels by OSD menu)
Brightness, color and contrast control: Yes (by OSD menu)
TECHNICAL FEATURES
Product dimensions (width x height x depth) mm: 125 x 165 x 21
Time to answer or open the door since the call is done: 30 s.
Conversation time: 90 s.
Conversation privacy: Yes
Voltage: 18-24 Vdc
Maximum consumption: 6.5 W (14,4W in ref. 9458 if the induction loop is on)
Standby consumption: 0.8 W
Working temperature (ºC, ºF); Humidity: [-5ºC, +40ºC][23ºF, 104ºF]; [0%, 90%]
Line adaptor included in the terminal: Yes (A, C, default position OFF)
Connections: Bin, Bin, Bout, Bout, -, A+, F1, T
Technology: DUOX
Weight: 0.266 kg
Measures of the packed product: 17x12,8x4 cm
EAN 13: 8424299094489
