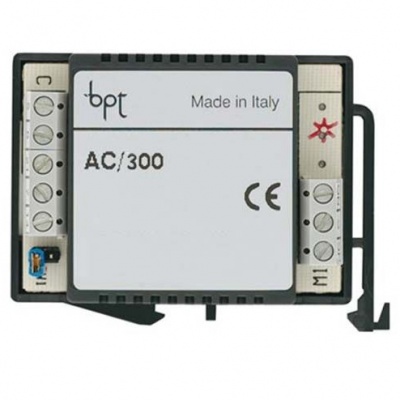

BPT AC/300 Auxilary Relay

BPT AC/300 Auxilary Relay

The unit can be used in system 300 and X2 installations as an adapter relay for switching on accessory equipment, such as additional audio signals or lights. The changeover contact relay can be activated by a call made from the entry panel.

The relay excitation time can be set via a 0 to 30 second potentiometer. The unit can be installed near a handset, in the wall housing, inserted in a 3-module embedding box, or installed on a DIN rail (EN 50022).

Please note: It is not possible to perform a second activation (call from the entry panel) before the call time of the activation in progress has terminated (minimum 30 s).

Key Features

• Current demand: 20 mA max
