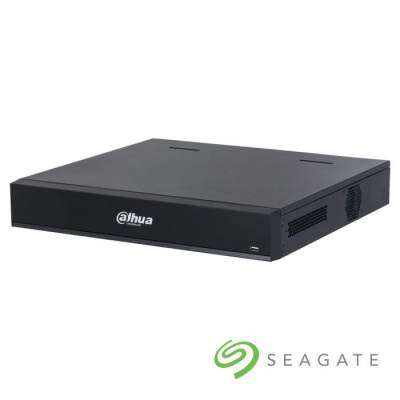

Dahua XVR5216AN-I3 WizSense 16 CH Penta-brid DVR AI encoding 5MP

Dahua XVR5216AN-I3 WizSense 16 CH Penta-brid DVR AI encoding 5MP
Catalogue No: XVR5216AN-I3
£193.88
(Exc. 20% VAT)
(£232.66 Inc. VAT)
–
+

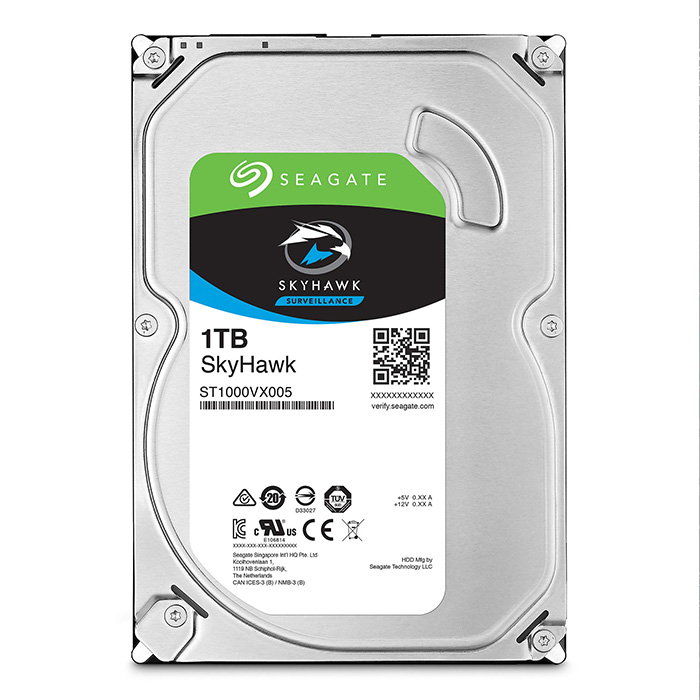

1Tb Seagate Skyhawk Surveillance drive installed and configured

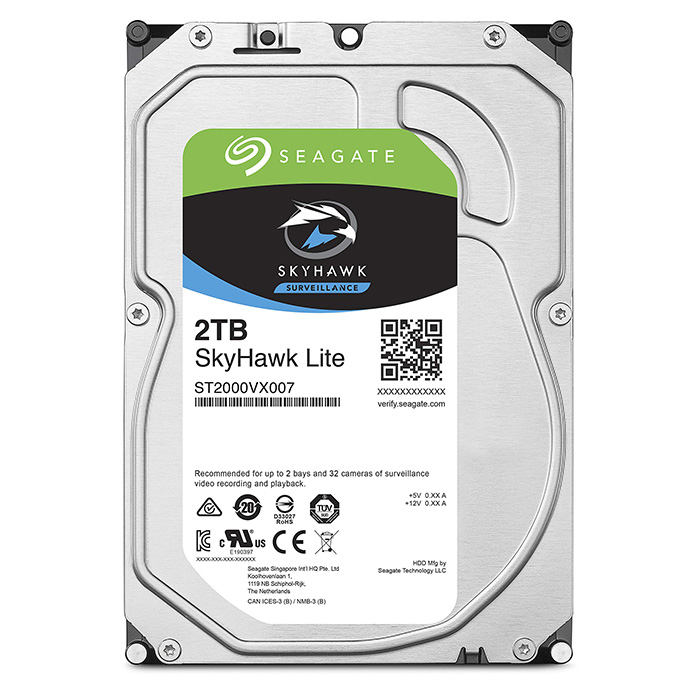

2Tb Seagate Skyhawk Surveillance drive installed and configured

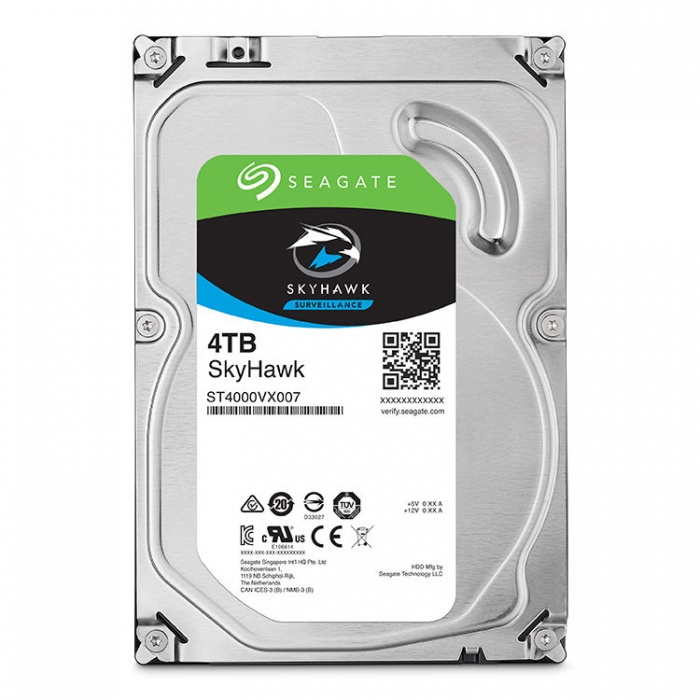

4Tb Seagate Skyhawk Surveillance drive installed and configured

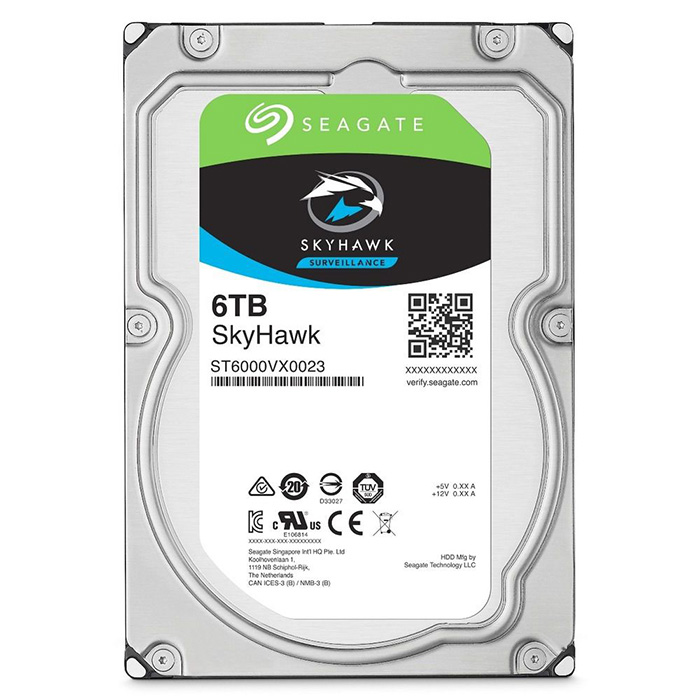

6Tb Seagate Skyhawk Surveillance drive installed and configured

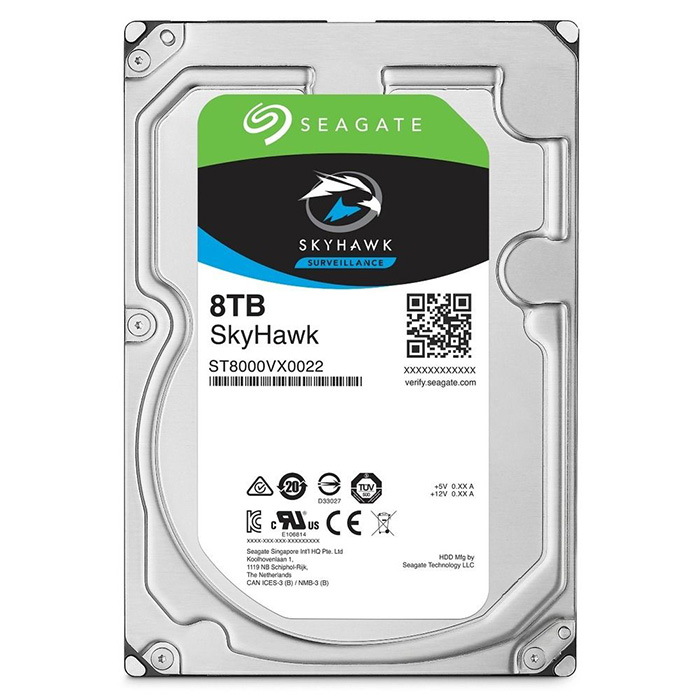

8Tb Seagate Skyhawk Surveillance drive installed and configured

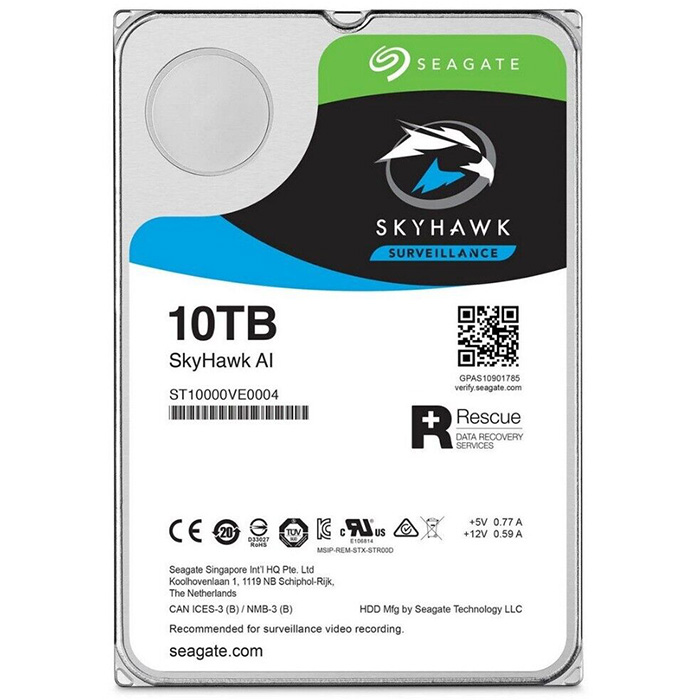

10Tb Seagate Skyhawk Surveillance drive installed and configured
Dahua
Information

Dahua XVR5216AN-I3 WizSense 16 CH Penta-brid DVR AI encoding 5MP

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream (analog channel ) human face recognition
  • IoT & POS functionalities
Specifications
System
Main Processor Embedded processor
Operating System Embedded Linux
Operating System Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channel, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input Up to 24 channels of IPC access
8 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream:
5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)
5M-N Mode:
All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)
Sub stream: D1, CIF@(1–15fps)
Dual-stream Yes
Video Frame Rate PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate 32 Kbps–6144 Kbps Per Channel
Audio Sampling 8 KHz, 16 bit
Audio Bit Rate 64 Kbps
Bit Rate Type Video stream and composite stream.
Video Output 1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression G.711A/G.711u/PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iPhone, iPad, Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or above, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method USB Device/Network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1-channel RCA (external)
16-channel BNC (coaxial audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 2 SATA Ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485 1 Port, for PTZ Control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply DC12V, 4A
Power Consumption Lower than 12 W
Net Weight 1.56 kg (3.44 lb)
Gross Weight 2.86 kg (6.31 lb)
Product Dimensions 1U, 375.0 mm × 289.4 mm × 53.0 mm
14.76" × 11.39" × 2.09" (W × D × H)
Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm
17.05" × 5.55" × 14.41" (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90%
Installation Desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Datasheet

Datasheet
Datasheet

Product Attributes
Catalogue No
XVR5216AN-I3
Brand
Dahua
Warranty
3 Years
HD Format
HDCVI AHD TVI CVBS IP
Resolution
4K
Compression
H264+
Max Cameras
16 + 8 (IP)
