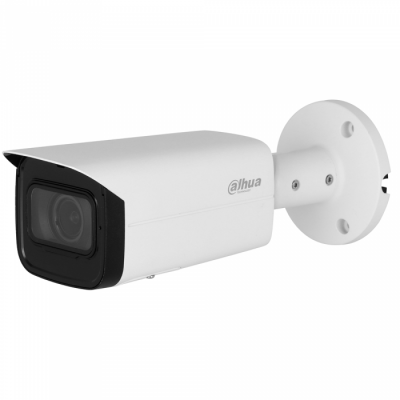

DahuaI PC-HFW3541T-ZAS-S2 5MP IR Vari-focal Bullet WizSense Network Camera

Catalogue No: IPC-HFW3541T-ZAS-S2

£166.46

(Exc. 20% VAT)

(£199.75 Inc. VAT)

Delivery info

–

Dahua PFA122 Junction Box

+ £18.14

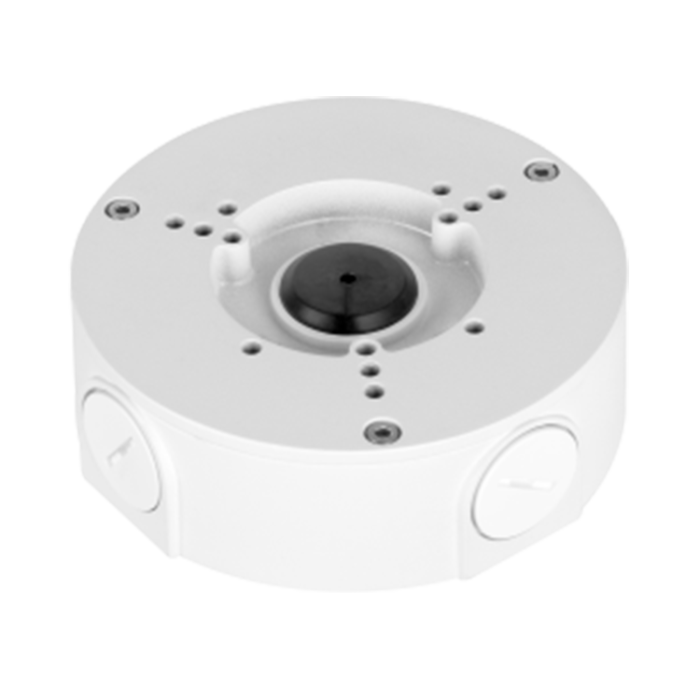

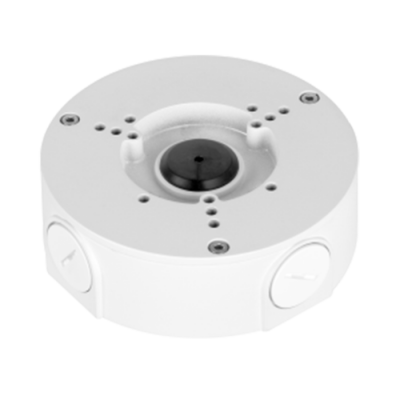

Dahua DH-PFA130-E Waterproof Junction Box IP66

+ £18.12

Dahua PFA152-E Pole Mount Bracket

+ £12.43

Dahua PFA135 Junction Box

+ £10.57

Information

DahuaI PC-HFW3541T-ZAS-S2 5MP IR Vari-focal Bullet WizSense Network Camera

5MP IR Fixed focal Bullet WizSense Network Camera With advanced deep learning algorithm, Dahua Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance.

Key Feature

5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 (optional) protection.
SMD 4.0, AI SSA.

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

Smart Motion Detection (SMD)

With intelligent algorithm, Dahua Smart Motion Detection technology can effectively recognize the target types, flitting the motion detection alarm triggered by non-concerned target types. It can realize effective and accurate alarm.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.5 (Color, 30 IRE)

0.0005 lux@F1.5 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 99°–28°

Vertical: 71°–21°

Diagonal: 134°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

64.0 m

25.6 m

12.8 m

6.4 m

(209.97 ft)

(83.98 ft)

(41.99 ft)

(21.00 ft)

210.0 m

84.0 m

42.0 m

21.0 m

(688.98 ft)

(275.59 ft)

(137.80 ft)

(68.90 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+

Smart H.264+

AI Coding

AI H.265

AI H.264

Video Frame Rate

Main stream: 2880 × 1620 @ (1–20) fps /

2960 × 1668 @ (1–20) fps /

2688 × 1520@(1–25/30 fps)

Sub stream 1: 704 × 576 @ (1–25 fps)/

704 × 480 @ (1–30 fps)

Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps

H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Stabilization

Electronic Image Stabilization (EIS)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

-ZAS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

-ZS:

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only - ZAS supports)

Audio Output

1 channel (RCA port) (Only - ZAS supports)

Alarm Input

1 channel in: 5 mA 3–5 VDC (Only - ZAS supports)

Alarm Output

1 channel out: 300 mA 12 VDC (Only - ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.8 W (12 VDC); 3.4 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.4W (12 VDC); 8.5 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% (RH)

Storage Temperature

–40°C to +60°C (–40°F to 140°F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

244.1 mm × 79.0 mm × 75.9 mm

(9.61" × 3.11" × 2.99") (L × W × H)

Net Weight

820 g (1.81 lb)

Gross Weight

1090 g (2.40 lb)

Datasheet

Product Attributes

Catalogue No

IPC-HFW3541T-ZAS-S2

Brand

Dahua

Warranty

3 Years

IR Illumination

50 meters

Rating

IP67

Resolution

5MP

CCD Type

1/2.7" CMOS

Compression

H.265/H.264

SD Card

Micro SD slot
