Fermax 2419 8 Way MDS Video Distributor

Zoom

Our Price:   £33.15 List Price:   £44.00 Saving Of:   £10.85 (25%) (Exc. 20% VAT)(£39.78 Inc. VAT) Catalogue No:  2419-Fermax Brand:  Fermax Availability:      Delivery Information Tweet

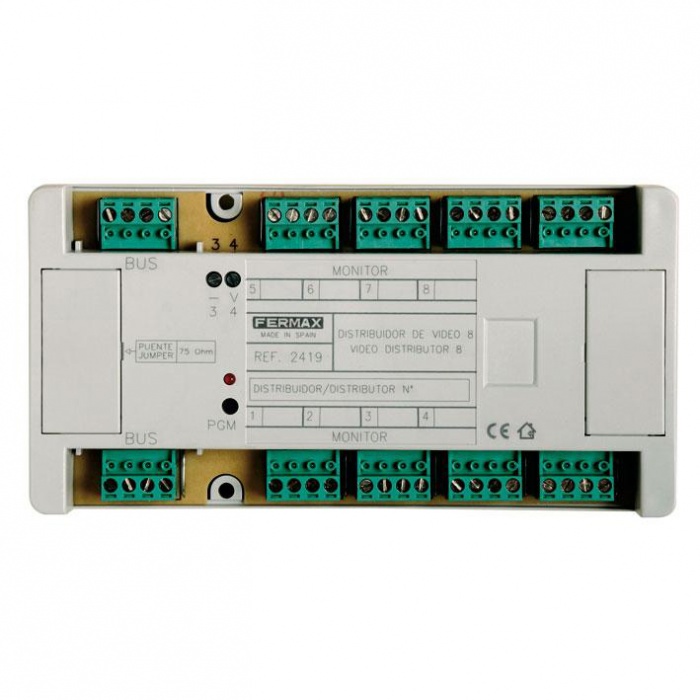

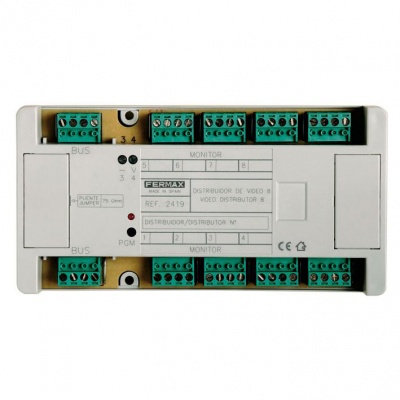

Fermax 2419 8 Way MDS Video Distributor

DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.
The video distributors are activated by the corresponding decoder via the "V" terminal.

The distributors include a bridge under the left cover, which will need to be cut in all the distributors except in the last one of each branch.

Power supply: 18 Vdc
Input impedance: 75 ohms.

DIN 10 dimensions: 175x 90 mm x60 mm
