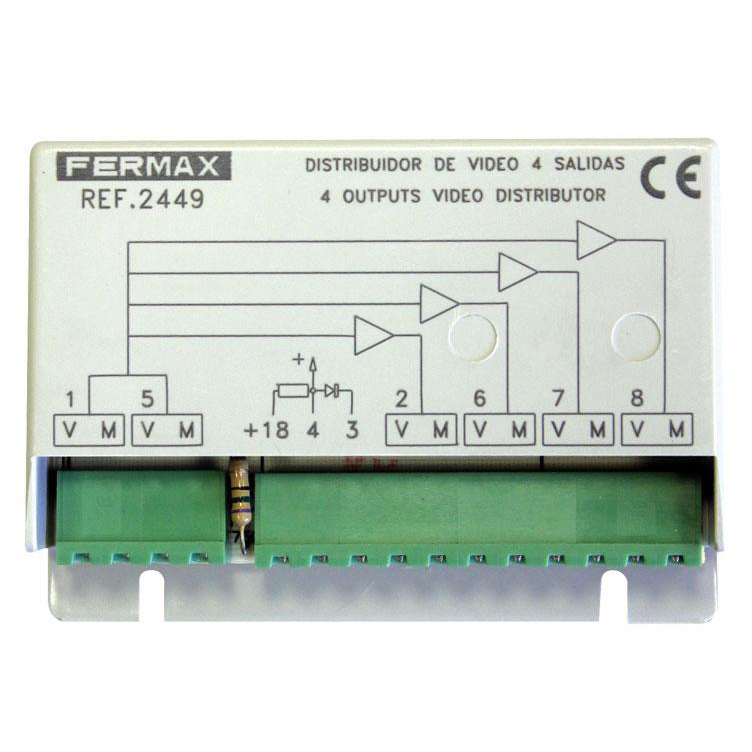

Fermax 2449 4 Way Distributor

Zoom

Our Price:   £12.85 List Price:   £17.05 Saving Of:   £4.20 (25%) (Exc. 20% VAT)(£15.42 Inc. VAT) Catalogue No:  2449 Brand:  Fermax Availability:      Delivery Information Tweet

Fermax 2449 4 Way Distributor

Video distribution in several outputs.
Must be used in all video signal bifurcations.

Available in 2 and 4 outputs.

Small size allows installation in electrical cabinets. Can be flush-fit in standard boxes 10x10 cm. With adhesive strips for fixing, or may be screwed directly onto the wall.

Conventional System: uses wires common to the whole installation plus 1 call wire (or call return) per home..

Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.

Wiring:
- Audio door entry system: 4 common wires + N (1 call wire per home).
- Video door entry system: 7 common wires + 1 video coaxial+N (1 call wire per home).
Maximum distance in the installation based on the cable section used (see technical manuals).

The distributors have a built-in load resistance of 75 ohms, which will need to be cut only when the output of step nº 1 is being used, in other words, it will be cut in all the distributors in cascade, except for in the last one of the trunk section.

Power supply:
- by Ct (4): 8-14 Vdc.
- by (+18): 15-24 Vdc.
Input impedance: 75 ohms.
Video input: 0.8-1.6 Vpp

Dimensions: 62x85x20 mm (height-width-depth).

Power supply:
- Audio: 12 Vac
- Video: 18 Vdc
