BPT Thangram DC/01 X1 Greyhound Grey audio panel

BPT Thangram DC/01 X1 Greyhound Grey audio panel
Our Price:  £148.00(Exc. 20% VAT)(£177.60 Inc. VAT)

Catalogue No:  DC-01
Brand:  BPT

Current Item:


Click for delivery info


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

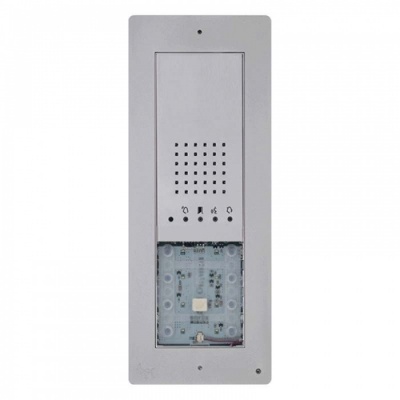

Audio entry panel; thermoplastic body finished in Greyhound Grey and décor panel in Aluminium

Circuit board for X1 system, microphone and loudspeaker Protection rating IP 54
Dimensions (WxHxD): 99x254x25 mm
Adjustment of microphone/loudspeaker volume and door lock release time. Simple connection using pre-wired flat cables (supplied as standard) and mini USB connector for programming with software tool. Local command for door lock, inputs for door lock release buttons, door status signalling devices, output connector for activation of external cameras. Blue LEDs (8) for backlighting of keys with name label. LEDs for visual control of the status of the system: red "call connected" LED, green "door open" LED, yellow "call in progress" LED, blue "system busy" LED.
