BPT DMC/01 speech module

Catalogue No: DMC-01
£231.74
£284.00
Saving Of
£52.26 (18%)
(Exc. 20% VAT)
(£278.09 Inc. VAT)
+
CAME BPT
Information

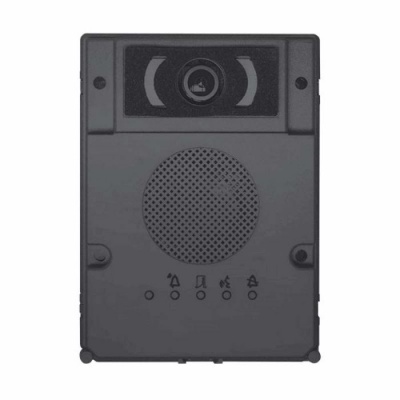

BPT DMC-01 speech module

This camera module from BPT is designed for use with vandal resistant panels using the X1 two wire cabling system. It features a wide viewing camera lens with built-in lighting which captures a full view of the visitor.

The module is also equipped with call status indicators which emit audible sounds when the visitor calls, the door is released and when the caller is engaged.

The module is equipped with adjustable microphone and loudspeaker volume control which can be easily accessed from the rear of the module. It comes with terminal blocks which have input connectors for an access control numeric keyboard and microphone. It also features a mini USB port for programming from a PC.

As standard this module comes with a connector for connecting the first four call buttons, to facilitate more call buttons a VSZ/308C call expansion module would be required.

Key Features

  • Wide eye camera lens
  • Visual and audible call status indicators
  • Adjustable microphone and loudspeaker volume
Specifications
  • Power supply: 14-18 V DC
  • Absorption: 345 mA (145 mA stand-by)
  • Standard video: PAL
  • Resolution: 680 x 512 pixel
  • Minimum lighting: 1 LUX
  • Max Solenoid lock absorption: 500 mA
  • Absorption with keypad backlight: 20mA
  • Operating temperature: -15 to +50 degrees centigrade
  • 130 x 95 x 35 (hwd mm)
Datasheet
Product Attributes
Catalogue No
DMC-01
