CAB-250M-RG59/POWER-LSF-BLK 250m Black RG59+ 12v DC Power CCTV Cable LSF

Catalogue No:
CAB-250M-RG59-POWER-LSF-BLK
£138.71
(Exc. 20% VAT)
(£166.45 Inc. VAT)
+
Online Security
Information

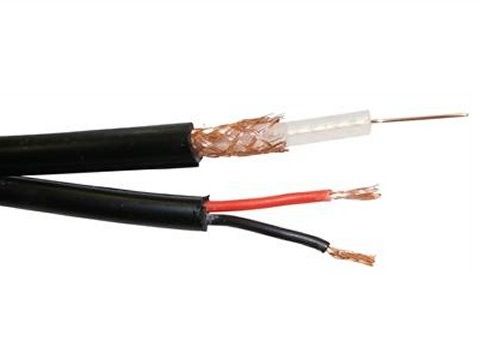

CAB-250M-RG59/POWER-LSF-BLK 250m Black RG59+ 12v DC Power CCTV Cable LSF

Key Features

  • 250m RG59+2 CCTV Cable
  • RG59
  • Inner conductor:0.81mm ±0.01m bare copper
  • Insulation :3.65mm ±0.05mm
  • Foam PE Outer conductor:14mm width
  • Double 07 blue AL foil 8×16×0.115=mm AL wire
  • Outer jacket:6.1mm black PVC
  • Two 7×0.38 AL wire, red and black
Specifications

Conductor

Material

Oxygen free copper (99.97% purity)

Diameter

0.45 mm ± 0.01 mm

Insulation

Material

HDPE

Min. Average Thickness

0.18 mm

Diameter

0.81mm±0.1mm

Color (4 Pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Rip Cord

Material

Polyester

Specification

500D

Sheath

Material

PVC

Min. Average Thickness

0.5 mm

Diameter

4.7 mm ± 0.3 mm

Color

White

Electrical

Max. DC Resistance of a Single Conductor

12Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100 ± 15Ω

Near End Cross Talk

≥35.30 dB/100 m@100 MHz

Max. Attenuation

24.2 dB/100 m@100 MHz

Return Loss

≥20.1 dB/100 m@100 MHz

Mechanical

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Packaging

Cable Length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions

364.0 mm × 364.0 mm × 216.0 mm

(14.33" × 14.33" × 8.50") (L × W × H)

Packaging Method

305.0 m (1000.66 ft) a carton, 45 pcs/pallet



Net Weight

≥7.0 kg (15.43 lb)

Gross Weight

≥8.0 kg (17.64 lb)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

Certification

CPR Eca



Transmission Characteristics

(100 m at 20°C) (328.08 ft at 68°F)

Frequency (MHz)

Phase delay ≤ ns

IL ≤ dB

TCL≥ dB﹡

EL TCTL

≥ dB﹡

NEXT ≥ dB

PS NEXT ≥ dB

1

n/s

n/s

50.0

35.0

n/s

n/s

4

552.0

4.5

44.0

23.0

56.3

53.3

8

547.0

6.4

41.0

16.9

51.8

48.8

10

545.0

7.2

40.0

15.0

50.3

47.3

16

543.0

9.0

38.0

10.9

47.2

44.2

20

542.0

10.2


Datasheet
Product Attributes
Catalogue No
CAB-250M-RG59-POWER-LSF-BLK
Brand
Online Security
