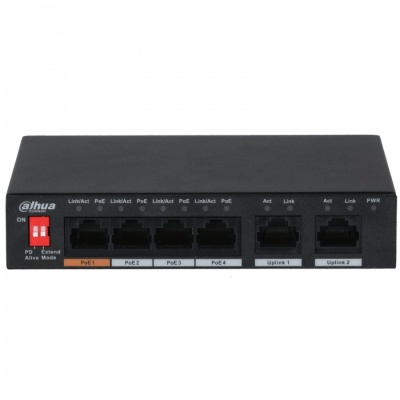

Dahua PFS3006-4ET-60-V2 4 port PoE Switch

Catalogue No:
(Exc. 20% VAT)
(£48.17 Inc. VAT)

Dahua PFS3006-4ET-60 4 port PoE Switch

6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

Key Features

  • * The parameters and datasheets below can only be applied to V2.0 (version 2.0)
  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
  • MDI/MDIX self-adaptation
  • RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
  • Port 1 supports Hi-PoE 60W power supply
  • 250 m PoE power supply
  • Wall mounting and mechanical anti-thef
  • 53V DC power supply
  • Supports PoE watchdog


Ethernet Port


Optical Port


Ethernet Port Rate

100 Mbps

Number of Business Card Slots

Port 1–4: 4 × RJ-45 10/100 M (PoE)
Port 5–6: 2 × RJ-45 10/100 M (uplink)

Power Supply

53V DC

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity


Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity


Power Consumption

Idling: 1.5W
Full load: 60W


Switching Capacity

1.80 Gbps

Packet Forwarding Rate

0.89 Mpps

Packet Buffer Size

1 Mbit

MAC Table Size


Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3x


PoE Standard


PoE Power


PoE Power Consumption Management


PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Far Distance Mode

250 m @10 Mbps



Air discharge: 8kV
Contact discharge: 6kV


Common mode: 2kV
Differential mode: 1kV

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.9 kg (1.98 lb)

Product Dimensions

130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

Packaging Dimensions

267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03")
