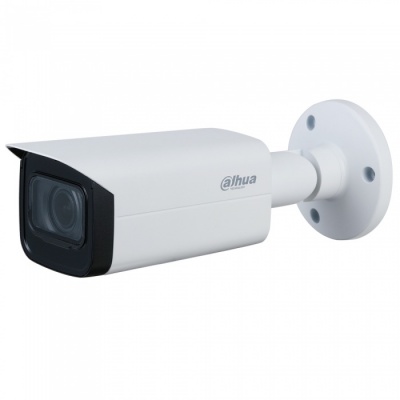

Dahua DH-HAC-HFW2501TUP-Z-A-27135-S2 5MP Pro Starlight Bullet Camera 2.8-12mm Lens 80m IR

Catalogue No: DH-HAC-HFW2501TUP-Z-A-27135-S2

£84.86

(Exc. 20% VAT)

(£101.83 Inc. VAT)

Delivery info

–

Information

Dahua DH-HAC-HFW2501TUP-Z-A-27135-S2 5MP Pro Starlight Bullet Camera 2.8-12mm Lens 80m IR

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.

Key Features

Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm–13.5 mm motorized lens
Max. IR length 80 m, Smart IR
IP67, 12V DC±30%

Specifications

Camera

Image Sensor

1/2.7"CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

0.001 Lux/F1.6, 30IRE, 0Lux IR on

Min. Illumination

> 65 dB

Illumination Distance

80m (262.5 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm; 6 mm; 8 mm

Max. Aperture

F1.6

Field of View

3.6 mm: H: 92°; V: 48°; D: 109°

6 mm: H: 57°; V: 30°; D: 65°

8 mm: H: 43°; V: 24°; D: 48°

Iris Type

Fixed

Close Focus Distance

3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.1 m (10.2 ft)
8 mm: 4.3 m (14.1 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

80 m (262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

6 mm

80 m

(262.5 ft)

48 m

(157.5 ft)

24 m

(78.7 ft)

12 m (39.4ft)

8 mm

150.4 m (493.4 ft)

60.2 m

(197.5 ft)

30.1 m

(98.8 ft)

15 m

(49.2 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps

NTSC: 5M@25 fps; 4M@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)

BLC

Datasheet

Product Attributes

Catalogue No

DH-HAC-HFW2501TUP-Z-A-27135-S2

Brand

Dahua

Warranty

3 Years

HD Format

HDCVI + CVBS 2 outputs

Lens supplied

3.6mm 2MP

IR Illumination

80m

Resolution

1080P 2MP

CCD Type

1/3" 2MP CMOS
