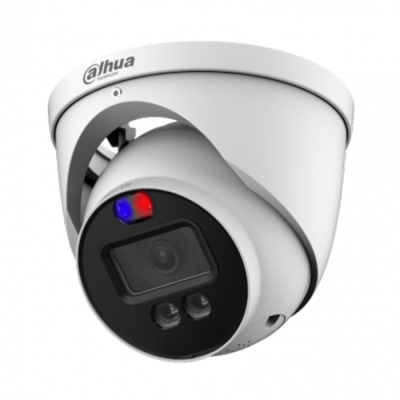

Dahua HAC-ME1809HP-A-PV-0280-S2 4K HDCVI IR (40m) TiOC Fixed Turret Camera, red blue Light + siren, 2.8mm Lens, DC12V, IP67

Catalogue No:
HAC-ME1809HP-A-PV-0280-S2
£70.54
(Exc. 20% VAT)
(£84.65 Inc. VAT)
+
Dahua
Information

Dahua HAC-ME1809HP-A-PV-0280-S2 4K HDCVI IR (40m) TiOC Fixed Turret Camera, red blue Light + siren, 2.8mm Lens, DC12V, IP67

4K HDCVI Full-Color Active Deterrence Fixed Eyeball Camera

Key features

*Intelligent Voice Alarm function which can be used with Scheduled AI of AI XVR is only available for TiOC 2.0, S2 Series camera.

** In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

  • Max 15 fps@ 4K
  • Smart Dual Light
  • Active deterrence with red blue light, siren and alarm out interface
  • 40 m illumination distance
  • Built-in mic
  • CVI/CVBS/AHD/TVI switchable
  • IP67, 12 VDC
Specifications

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840(H)×2160(V)

Pixel

4K

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/3s~1/100000s

NTSC:1/4s~1/100000s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6, 0 Lux warm light on

Illumination Distance

40 m (131.2 ft)

Illumination Type

Warm light

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8mm:H: 107°; V: 56°;D: 127°

3.6mm:H: 89°; V: 46°;D: 105°

Iris Type

Fixed iris

Close Focus Distance

2.8mm: 1.5m(4.92ft)

3.6mm: 2.2m(7.22ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

87.7 m (287.73 ft)

35.1m

(115.16 ft)

17.5m (57.41 ft)

8.8m

(28.87 ft)

3.6 mm

110.3 m (361.88 ft)

44.1 m (144.69 ft)

22.1 m (72.51 ft)

11 m

(36.09 ft)

Video

Frame Rate

CVI:

4K@15fps/25fps/30fps, 4M@25fps/30fps;

AHD:

4K@15fps;

TVI:

4K@15fps

Resolution

4K(3840×2160);4M(2560×1440)

BLC Mode

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
IEC 62368-1:2014 (Second Edition)

Port

Video Output

1 BNC output
Support CVI/TVI/AHD

Audio Input

Built-in mic

Alarm out

1ch alarm out

Active Deterrence

Red/Blue Light Warning

Flash: 5 s–30 s; frequency: high/medium/low

Sound Warning

Audio 1/2/3; Volume: high/medium/low;

duration: 5 s–30 s; 110 dB

Power

Power Supply

12V ±30% DC

Power Consumption

Max 7.7W (12V DC, warm light on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Ingress Protection

IP67

Structure

Casing

Metal

Camera Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8" × 4.37")

Net Weight

0.69 kg (1.52 lb)

Gross Weight

0.95 kg (2.01 lb)

Datasheet
Product Attributes
Catalogue No
HAC-ME1809HP-A-PV-0280-S2
Brand
Warranty
3 Years
HD Format
CVI/TVI/AHD/CVBS
Lens supplied
2mm8
Illumination
40m
Rating
IP67
Resolution
4K
Audio
Built in Mic
