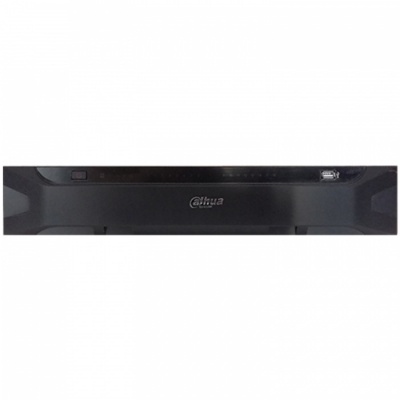

Dahua NVD0905DH-4I-4K Ultra-HD Network Video Decoder

Dahua NVD0905DH-4I-4K Ultra-HD Network Video Decoder
  Zoom
Our Price:  £1,161.23
List Price:  £1,283.04
Saving Of:  £121.81 (9%)
(Exc. 20% VAT)(£1,393.48 Inc. VAT)Catalogue No:  NVD0905DH-4I-4K

Current Item:



Special Order Item

+

Dahua

Dahua NVD0905DH-4I-4K Ultra-HD Network Video Decoder

Ultra-HD Network Video Decoder

Key Features

  • Designed for standalone operator viewers
  • H.265+/H.265/H.264/MJPEG/MPEG4/MPEG2 video decoding
  • Ultra-high decoding ability, up to 32MP
  • 2ch HDMI and 2ch DVI-I input, 9ch HDMI output
  • Supports 1/4/6/8/9/16/25/36 and free split
  • Supports alarm, RS232, RS485
  • Splicing screens control for zoom/merge/roam/overlay

System

Processor

Embedded processor

Operating System

LINUX

Performance

Video Format

H.265+/ H.265/ H.264/ MPEG4/ MPEG2/ MJPEG

Audio Format

PCM/G711/AAC

Decoding Capacity Separately

Port 1,2,3

Port 4,5,6

Port 7,8,9

1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1

1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1

1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1

Total Video Decoding

3CH@32MP(25fps)/9CH@12MP(15fps)/12CH@8MP/48CH@1080P/108CH@720P/192CH@D1

Decoding Resolution

32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF

Video Output

9ch HDMI

Display Resolution

3840×2160(30fps)/2560×1600/1920×1080/1280×1024/1280×720/1024×768, only 6 ports support 3840×2160, the remaining 3 ports support 2560×1600

Video Input

2 HDMI, 2 DVI-I

Collection Resolution

3840×2160(HDMI 1)/1920×1080/1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600, etc

Audio Output

9ch HDMI (embedded)

Communication Interface

2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485

Bi-directional Talk

1 Pair 3.5mm jack (reserved) (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)

Alarm Input

4ch

Alarm Output

4ch relay out (30VDC 1A, 125VAC, 0.5A)

Others

Power Supply

AC100-240V, 50Hz-60Hz

Power Consumption

≤70W

Working Temperature

-10 °C to +55 °C (14 °F to 131 °F)

Working Humidity

10~90%RH / 86~106kpa

Unit Dimension

1.5U, 440×408×70mm(17.32 × 16.06 × 2.76 inch), (W*D*H)

Weight

4.83kg(10.65 lb)

Catalogue No:  NVD0905DH-4I-4K
Brand:  Dahua
Warranty:  3 Years
