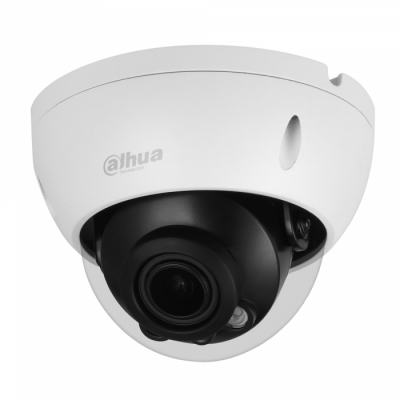

Dahua IPC-HDBW2531RP-ZS-S2 5MP Lite IR Vari-focal Dome Network Camera

Dahua IPC-HDBW2531RP-ZS-S2 5MP Lite IR Vari-focal Dome Network Camera
Catalogue No: IPC-HDBW2531RP-ZS-S2
£129.25
(Exc. 20% VAT)
(£155.10 Inc. VAT)
–
+
Dahua PFB220C Ceiling Mount Bracket

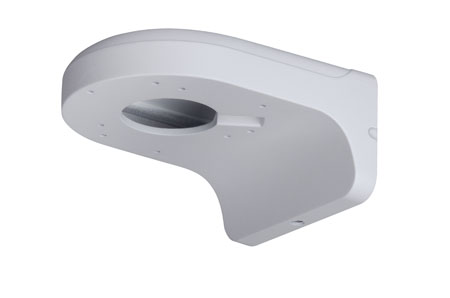

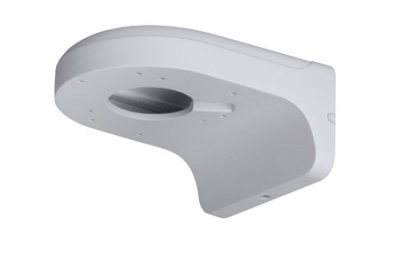

Dahua PFB203W Wall Bracket
Dahua PFA106 ceiling Mount Adapter
Dahua PFA152-E Pole Mount Bracket
Dahua PFA137 Junction Box

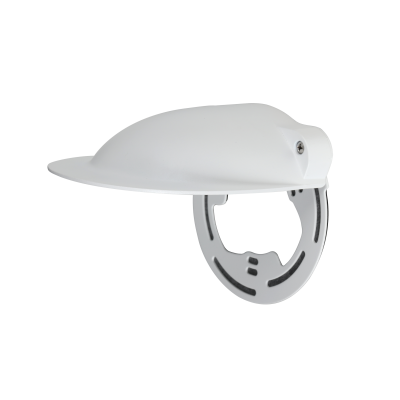

Dahua PFA200W Dome Camera Rain Shield
Dahua
Information

Dahua IPC-HDBW2531RP-ZS-S2 5MP Lite IR Vari-focal Dome Network Camera

5MP Lite IR Vari-focal Dome Network Camera

Key Features

  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 40 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power supply
  • IP67, IK10 protection
Specifications
Camera
Image Sensor 1/2.7” 5Megapixel progressive CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 Lux @ F1.5
S/N Ratio >56 dB
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 100°–26°
Vertical: 72°–20°
Diagonal: 133°–33°
Iris Type Fixed
Close Focus Distance 0.8m–0.8m (2.62 ft–2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64 m 25.6 m 12.8 m 6.4 m
(209.97 ft) (83.99 ft) (41.99 ft) (21 ft)
T 220 m 88 m 44 m 22 m
(721.78 ft) (288.71 ft) (144.36 ft) (72.18 ft)
Smart Event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:
2592 × 1944 (1 fps-20 fps)
2688 × 1520 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 7.9W
Environment
Operating Conditions -30°C to +60°C (-22°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67; IK10
Structure
Casing Metal
Dimensions Φ122 mm × 88.9 mm (Φ4.80" × 3.50")
Net Weight 0.47 kg (1.1 lb)
Gross Weight 0.63 kg (1.4 lb)
Audio Output 1 channel
Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital output
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O 02-Jan
Audio I/O 01-Jan
Power
Power Supply 24 VDC, 2.5 A ± 25%
PoE+ (802.3at)
Power Consumption Basic: 10 W
Max: 22 W (illuminator on)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤ 95% (RH)
Protection IP67; IK10; TVS 6000V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 332 mm × Φ190 mm (13.07" × Φ7.48")
Net Weight 4.7 kg (10.36 lb)
Gross Weight 8.0 kg (17.64 lb)
Datasheet
Product Attributes
Catalogue No
IPC-HDBW2531RP-ZS-S2
Brand
Dahua
Warranty
3 Years
Lens supplied
2.7 mm–13.5 mm
IR Illumination
40 Meters
Resolution
5MP
CCD Type
1/2.7” 5Megapixel progressive CMOS
