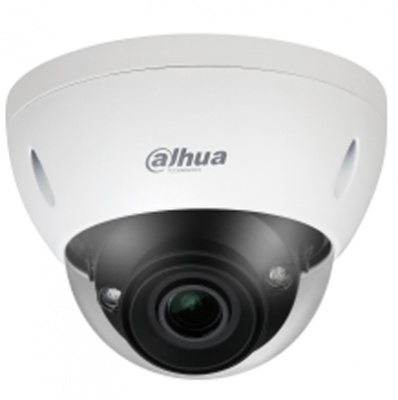

Dahua IPC-HDBW5442E-ZE 4MP Starvis IP Dome Camera 2.7-12mm M-VR 50m IR Audio Micro SD IK10 ePoE

Catalogue No:
IPC-HDBW5442E-ZE
£185.69
(Exc. 20% VAT)
(£222.83 Inc. VAT)
+
Dahua
Information

Dahua IPC-HDBW5442E-ZE 4MP Starvis IP Dome Camera 2.7-12mm M-VR 50m IR Audio Micro SD IK10 ePoE

4MP IR Vari-focal Dome WizMind Network Camera

1/1.8” 4Megapixel progressive scan STARVIS™ CMOS, H.265&H.264 triple-stream encoding, 25/30fps@4Mp(2688×1520), WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC, Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS, 2.7mm ~12mm motorized lens, 1/1 Alarm in/out, 1/1 audio in/out, Max. IR LEDs Length 45m, Micro SD memory, IP67, IK10

Key Features

  • 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2688 × 1520)@30 fps. · Built-in IR LED, and the max. illumination distance is 45 m.
  • ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Three switchable intelligent resources: IVS, face detection, and people counting.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
  • 24 VAC/12 VDC/PoE power supply, easy for installation.
  • ePoE; IP67 and IK10 protection.
  • SMD 3.0
Specifications

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128MB

RAM

1GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.8 (Color, 30 IRE)
0.0003 lux@F1.8 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

45 m (147.64 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.8

Field of View

Horizontal: 114°–47°
Vertical: 62°–26°
Diagonal: 136°–56°

Iris Control

Auto

Close Focus Distance

1.2 m (3.94 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

57.5 m (188.65 ft)

23.0 m (75.46 ft)

11.5 m (37.73 ft)

5.7 m

(18.70 ft)

T

130.7 m (428.81 ft)

52.3 m (171.59 ft)

26.1 m (85.63ft)

13.1 m (42.98ft)

Smart Event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

SMD 3.0

Less false alarm, longer detection distance

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1 fps–25/30 fps)
Sub stream: D1@(1 fps–50/60 fps)
Third stream: 1080p@(1 fps–50/60 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270°

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input error; intensity change; people counting; face detection; voltage detection; people counting in area; stay detection; people number error detection; queue management

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 88 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE8 and later
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel ( RCA port)

Audio Output

1 channel ( RCA port)

Alarm Input

1 channels in: 5 mA 3 V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%)&24 VAC (±30%); PoE (802.3af); ePoE

Power Consumption

Basic: 4.9 W (12 VDC); 5.1 W (24 VAC); 5.2 W (PoE)

Max. (max. stream + intelligence + IR on + focus): 12.4 W (12 VDC); 11.9 W (24 VAC); 11.6 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal + plastic

Product Dimensions

Φ159 mm × 117.9 mm (6.26" × 4.64")

Net Weight

950 g (2.09 lb)

Gross Weight

1200 g (2.65 lb)

Datasheet
Product Attributes
Catalogue No
IPC-HDBW5442E-ZE
Brand
Warranty
3 Years
Lens supplied
2.7-12mm
IR Illumination
50 meters
Rating
IP67
Resolution
4MP
CCD Type
1/1.8” 4MP progressive scan STARVIS™ CMOS
Compression
H.265/H.264
Audio
Audio in/out
SD Card
Micro SD slot
