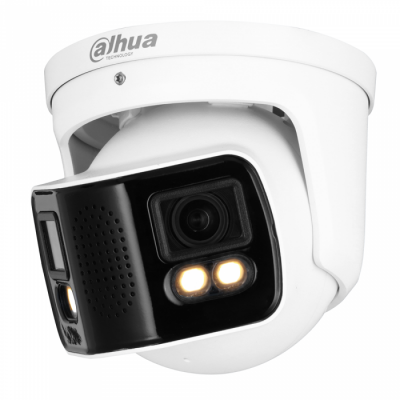

Dahua DH-IPC-PDW5849-A180-E2-ASTE WizSense 2X4MP IP IR 40M Splicing IP67 Camera

Dahua DH-IPC-PDW5849-A180-E2-ASTE WizSense 2X4MP IP IR 40M Splicing IP67 Camera
Catalogue No: DH-IPC-PDW5849-A180-E2-ASTE
£212.00
(Exc. 20% VAT)
(£254.40 Inc. VAT)
–
+
Dahua PFB220C Ceiling Mount Bracket
Dahua PFB203W Wall Bracket
Dahua PFA152-E Pole Mount Bracket
Dahua PFA137 Junction Box
Dahua
Information

Dahua DH-IPC-PDW5849-A180-E2-ASTE WizSense 2X4MP IP IR 40M Splicing IP67 Camera

8MP Lite IR Fixed-focal Dome Network Camera

Key Features

  • Outputs 180° wide angle splicing image.
  • Outputs max. 8 MP (4096 × 1800)@25 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light, and the max. illumination distance is 40 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD.
Specifications
Camera
Image Sensor Dual 1/1.8" CMOS
Max. Resolution 4096 (H) × 1800 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0005 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft)
Illuminator On/Off Control Auto
Illuminator Number 4 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 4°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M16
Focal Length 3.6 mm
Field of View H: 180°±10° V: 48°
Max. Aperture F1.0
Iris Control Fixed
Close Focus Distance 3.6 m (11.81 ft)
DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 70.3 m (230.64 ft) 28.1 m 14.1 m 7.0 m
(92.19 ft) (46.26 ft) (22.97 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Heat Map Yes
Smart Object Detection Smart abandoned object; smart missing object
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate WDR Off:
Main stream: 4096 × 1800 @ (1–25 fps)
sub stream: 1024 × 452 @ (1–25 fps)
third stream: 1920 × 832 @ (1–25 fps)
WDR On:
Main stream: 4096 × 1800 @ (1–20 fps)
sub stream: 1024 × 452 @ (1–20 fps)
third stream: 1920 × 832 @ (1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 9 kbps–8192 kbps
H.265: 9 kbps–8192 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Privacy Masking 4 areas
Defog Yes
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 8 and later
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channels in: 5 mA 3 V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%)/PoE+ (802.3at)/ePoE
Power Consumption Basic: 4.8 W (12 VDC); 5.5 W (PoE)
Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Metal
Product Dimensions Φ122 mm × 131.9 mm (Φ4.80" × 5.19" )
Net Weight 990 g (2.18 lb)
Gross Weight 1150 g (2.54 lb)
Datasheet
Product Attributes
Catalogue No
DH-IPC-PDW5849-A180-E2-ASTE
