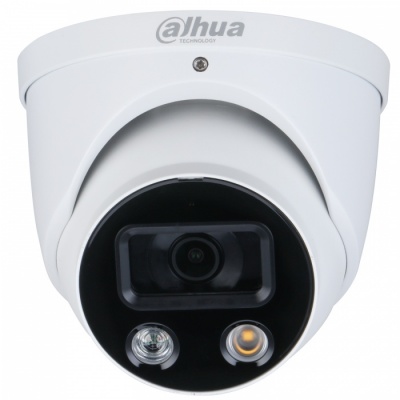

Dahua IPC-HDW3849HP-AS-PV-0360B-S3 8MP TiOC 2.0 AI IP Turret 2.8mm 30m IR and warm light PoE

Catalogue No: IPC-HDW3849HP-AS-PV-0360B-S3

£150.86

(Exc. 20% VAT)

(£181.03 Inc. VAT)

Delivery info

–

Dahua PFB220C Ceiling Mount Bracket

+ £25.64

Dahua PFA106 ceiling Mount Adapter

+ £12.72

Dahua PFA137 Junction Box

+ £12.23

Dahua DH-PFB205W-B Wall Bracket Black

+ £8.51

Information

Dahua IPC-HDW3849H-AS-PV-0280-S2 8MP AI IP Dome Camera 2.8mm 40m IR PoE

8MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera

Key Features

8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
H.265 codec, high compression rate, low bit rate
Built-in warm illuminator, and the max. illumination distance: 30 m
ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital
Zatermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
12V DC/PoE power supply
IP67 protection
SMD Plus
Red and blue flashlight alarm

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color

With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Siren and Light Active Deterrence

Dahua siren and light active deterrence network camera supports light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications

Camera

Image Sensor

1/2.8”8Megapixel progressive CMOS

Max. Resolution

3840(H) × 2160 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 Lux @ F1.4

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°

3.6 mm: Horizontal 89° × Vertical 46° × Diagonal 102°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.9 ft)

3.6 mm: 2.2m (7.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

87.7m

(287.7 ft)

35.1 m

( 115.2 ft)

17.5m

(57.4 ft)

8.8m

(28.8 ft)

3.6 mm

110.3m

(361.8 ft)

44.1m

(144.7ft)

22.1m

(72.5 ft)

11m

(36 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

(only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 @(1–20 fps by default)

3840 × 2160 @(1–25/30 fps with AI function disabled)

sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
third stream:1280 × 1080 @ (1–25/30 fps)

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480);

VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM, G.711a, G.711Mu, G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing)

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 3.1W (DC12V); 3.5W (POE)Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.8W (DC12V); 8.2W (POE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

Φ122.0 mm × 110.9 mm (4.8" × 4.4")

Net Weight

754 g (1.7 lb)

Gross Weight

915 g (2.0 lb)

Datasheet

Product Attributes

Catalogue No

IPC-HDW3849HP-AS-PV-0360B-S3

Brand

Dahua

Warranty

3 Years

Lens supplied

2.8mm

IR Illumination

40 Meters

Rating

IP67

Resolution

8MP

CCD Type

1/2.8” 8 Megapixel CMOS

Compression

H.265+/H.265/H.264+/H.264
