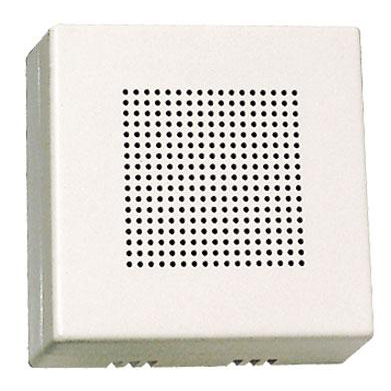

Fermax 2040 Electronic Extension Call repeater

Equipment that lets you hear the audio/video door entry ring tone from a place other than where the telephone or monitor is located.
Conventional System: uses wires common to the whole installation plus 1 call wire (or call return) per home..
Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.

Wiring:

• Audio door entry system: 4 common wires + N (1 call wire per home).
• Video door entry system: 7 common wires + 1 video coaxial+N (1 call wire per home).


Maximum distance in the installation based on the cable section used (see technical manuals).

Installation: 2 wires
Dimensions: 75x75x25 mm
Power supply:

• Audio: 12 Vac
• Video: 18 Vdc
