GJD GJD090 Multispeech 4, 4 channel 20 second voice enunciator

Catalogue No:
GJD090
£75.84
£87.47
Saving Of
£11.63 (13%)
(Exc. 20% VAT)
(£91.01 Inc. VAT)
+
GJD
Information

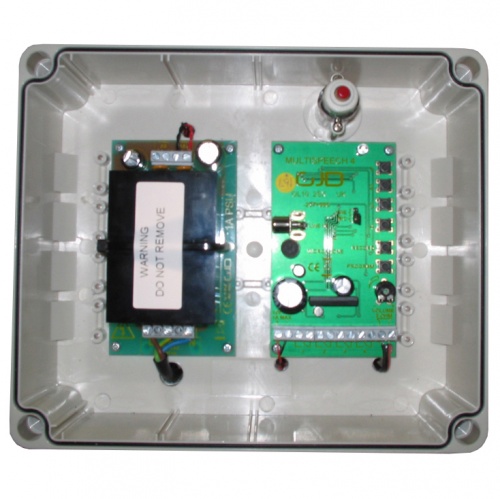

GJD GJD090 Multispeech 4, 4 channel 20 second voice enunciator

The Multispeech 4 is a four channel speech enunciator module designed for security, access control, welcoming, advising or warning. The module can be configured to accept any normally open or normally closed device. This gives a greater flexibility to use any detection device, alarm panel, panic button, telephone responder or activation from a Remote Video CCTV Monitoring Station.

A separate 30 second message can be recorded on each of the four channels or alternatively one single message of 120 seconds long. Each of the four messages can be played back separately by triggering the corresponding input. The Multispeech is a module for mounting inside a host system cabinet using the four self adhesive supports supplied. It provides a 2 x 8 Ohm audio outputs that can be applied to loudspeakers. Recording can be made using the on board microphone or alternatively by a 1 V p-p line input

Key features

  • Four individual channel buttons
  • Record button
  • Program button
  • Speaker output
  • Four indivdual alarm outputs
  • 12VDC Input
  • Volume control (+ = maximum)
  • Microphone
  • Line in or onboard microphone selector 10.
Specifications

Recording Time

one single message of 120 seconds  maximum or four individual messages of  30 seconds.

Memory Type:

EEPROM (non-volatile memory)

Channel input type

Four individual normally open or normally  closed triggers

Audio output:

Maximum 2 x 8W @ 8 Ohms minimum (loudspeaker power handling min. 8W  impedance min 8ohms.)

External audio input:

1V p-p maximum (jumper selectable)

Supply Voltage

9VDC to 15VDC

Current Consumption

standby 9mA - record 38mA

peak 1 Amp max. (playback into

loudspeaker)

Features:

Pulse Count selectable (1 to 3)

Optional preceding message alert Re-trigger period between 1 and 30  seconds

Linking message outputs

Operating Temp

-10 + 50 degrees centigrade

Dimensions:

100mm x77mm x 40mm (including  supports)

Weight:

60g (including support)

Datasheet
Product Attributes
Catalogue No
GJD090
Brand
GJD
