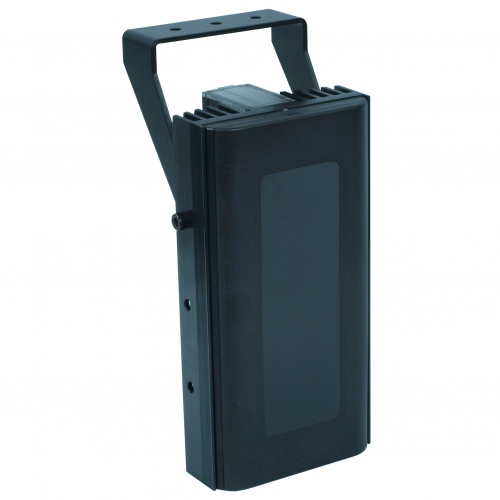

GJD IX-8 CLARIUS+ Xlge 850nm IR lv 52w LED

Catalogue No:
GJD-IX-8
£448.27
£517.55
Saving Of
£69.28 (13%)
(Exc. 20% VAT)
(£537.92 Inc. VAT)
+
GJD
Information

GJD IX-8 CLARIUS+ Xlge 850nm IR lv 52w LED

The Clarius® Plus range of high performance Infra-Red LED illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount Dual Core® LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.

Key Features

  • Latest Dual Core® SMT LED technology
  • Distances up to 262m (859’)
  • Angle 10°, 30º, 60º & 95º
  • Elliptical beam profiles
  • 850nm or 940nm wavelengths
  • Low power consumption (52W)
  • Long life
  • 5 year warranty
  • IP66 weather proof rating
  • Built-in photocell IR on/off
  • Photocell following contact
  • Telemetry input for remote switching
  • 12-32V DC / 24V AC +/- 10%
  • CleanLITE® self cleaning lens coating technology
  • Pressure equalisation vent High quality anodised aluminium heatsink

The Clarius® Plus range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects. As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30º, 60º and 95º elliptical beam profiles. Installation is quick and easy, requiring only 12-32V DC / 24V AC +/- 10%.

Specifications

GENERAL

ELECTRONICS

High efficiency surface mount high power dual core® with advanced current  limited integral control circuitry

CONSTRUCTION

Robust high quality aluminium extrusion

FRONT WINDOW

Polycarbonate high transmission protective (vandal proof) ir filter with  CleanLITE® technology

FINISH

Black anodised

POWER CABLE

3m (9ft) including photocell following contact & remote telemetry input

PRESSURE EQUALISATION  VENT

Prevents thermal expansion & pressure cycling

PHOTOCELL

Adjustable 20 -70 Lux

ILLUMINATION

Adjustable 10% - 100%

OPERATING TEMPERATURE

-50° to 50ºC (-58º to 122ºF)

WEIGHT

1.75Kg (3.9lbs)

MOUNT

Powder coated stainless steel wall mount

DIMENSIONS

213 x 110 x 78mm (8.39” x 4.33” x 3.07”)

ELECTRICAL

INPUT VOLTAGE

12-32V DC or 24V AC +/-10%

INPUT CURRENT

2.2A at 24V AC

CONSUMPTION

52W

WAVELENGTH

STANDARD

850nm (Semi Covert). Faint Red Glow Only

OPTIONAL

940nm (Covert). Minimal visible glow

CERTIFICATIONS

WEEE

Waste electrical & electronic equipment european directive 202/96/EC

RoHS

Restriction of hazardous substance european directive 202/95/EC

CE-EMC

EN 61547 (Lighting-Immunity)

EN 55015 (Lighting-Emission)

EN 62493 (Lighting-EMF)

EN 50130-4 (Alarm-EMC)

EN61000 FCC Part 15. 107 15. 108 Class B

CE-LVD

EN 60598-1 (Luminaires-General)

EN 60598-2-1 (Luminaires)

EN 62368-1 / EN 60950-22

SAFETY

EN 62471 (LED safety)

EN60598:2004 Electrical Safety

EN60825-1 Laser Eye Safety

IP

IP66 In Accordance With EN60529;1992

ENVIRONMENTAL

IEC/EN 60529 IP66

IEC/EN 62262 IK09

EN 50130-5 (Alarm-environmental)

N2580, EN 50581 (RoHS), REACH

USA

cULus UL 2108

 UL 8750

FCC Class B

AUS

RCM (AS/NZS CISPR 22 Class B)

Datasheet
Product Attributes
Catalogue No
GJD-IX-8
Brand
GJD
