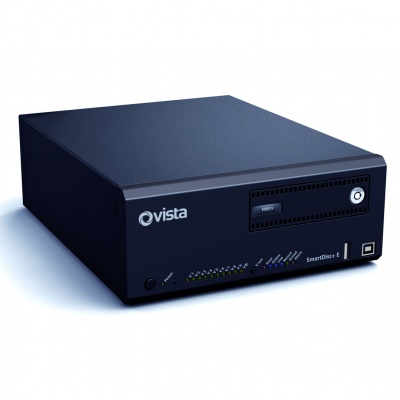

Vista SmartDisc+E4 4CH CVBS Hybrid IP 25FPS 12-24VDC H.264/MJPEG/JPEG

Catalogue No: SmartDisc-E4
£1,369.75
(Exc. 20% VAT)
(£1,643.70 Inc. VAT)
+
Vista
Information

Vista SmartDisc+E4 4CH CVBS Hybrid IP 25FPS 12-24VDC H.264/MJPEG/JPEG

The SmartDisc+ E is a true hybrid recording and transmission platform, capable of supporting a maximum of 4 cameras. These could be IP cameras with H.264, MJPEG or JPEG encoding and CVBS analogue, allowing flexibility in camera choice to suit the site requirements. The SmartDisc+ E supports IP cameras up to 5MP. With real-time recording on 720p cameras, this also enables up to 4 Intrusion Trace.h licences to be loaded onto the SmartDisc+ E for industry leading analytics detection in remote monitoring applications. The dual purpose design makes the SmartDisc+ E suitable for static or mobile applications. In static applications you can choose between 2 and 4TB HDD and for mobile applications there is a 1TB HDD. Should a LAN/WAN/ADSL connection not be available, there is an optional 4G/GPS plug in module that can be fitted for off-site transmission of alarms and images. When using the SmartDisc+ E in a rapid deployment or mobile application, with a suitable aerial, it can provide pinpoint GPS tracking for proof of location.

Key Features

  • True hybrid, up to 4 analogue & IP cameras supported
  • Real-time recording
  • H.264, MJPEG & JPEG encoding supported
  • 2 & 4TB HDD for static applications
  • 1TB HDD for mobile applications
  • Up to 4 IntrusionTrace.h licences
Datasheet
Product Attributes
Catalogue No
SmartDisc-E4
Brand
Warranty
3 Years
SATA HDD
Removable SATA HDD
Compression
H.264
Record Rates
IP 5MP / A 720p
Recording Formats
1080p TVI-AHD-IP-CVBS (960H)
Max Cameras
4
