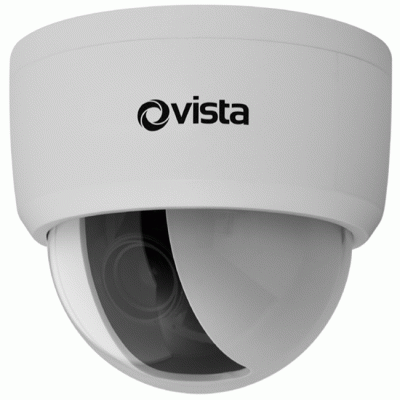

Vista VFDA28V12HDA 1080P 2MP TVI/AHD/CVBS Dome 2.8-12mm F1.2-360 12VDC White/Black

Vista VFDA28V12HDA 1080P 2MP TVI/AHD/CVBS Dome 2.8-12mm F1.2-360 12VDC White/Black
Variants: White case Clear bubble Black linerVariants: White case Clear bubble White linerVariants: Black case Clear bubble Black liner
Our Price:  £144.37(Exc. 20% VAT)(£173.24 Inc. VAT)Catalogue No:  VFDA28V12HDA-WCW

Current Item:


Click for delivery info



Vista VFDA28V12HDA 1080P 2MP TVI/AHD/CVBS Dome 2.8-12mm F1.2-360 12VDC White/Black

The VFDA28V12HDA is a discrete, fixed internal dome camera, capable of providing full HD 1080p resolution in TVI High Definition Analogue (HDA) format, over the coax cabling. With a wide range of features, it is suitable for many internal applications.
Crystal clear images are provided via the 2.8-12mm 2MP lens and the VFDA28V12HDA incorporates a comprehensive On Screen Display (OSD) menu. Accessible features include DWDR to provide balanced images in areas where there are contrasting scenes of view, along with Automatic Gain Control (AGC), Back Light Compensation (BLC), peak white inversion and 4 user defined privacy zones. The OSD is accessed locally from the tact switch, or over the coax if used with a compatible HDA DVR, making image set up and adjustment very easy for
both installation and any servicing adjustments. Switching between the TVI/AHD/CVBS formats is quick and simple, aiding with the support of legacy DVR/control equipment support and a simple upgrade path to HD images on existing analogue systems once the DVR is upgraded.
The ‘all-in-one’, design of the VFDA28V12HDA, with the optically correct lower bubble and 3-axis gimble further simplifies installation and 12/24V operation allows a variety of power supplies to be used to suit the site application.

Key Features

  • Full HD imaging: Full HD 1920×1080 resolution in TVI or AHD formats ensures excellent images over the coax
  • Triple format: A single output provides 1080p or 1000TVL in CVBS to ensure compatibility with modern and legacy DVRs
  • Local or remote OSD set up: Access the comprehensive OSD either from the tact switch or over the coax with a compatible TVI/AHD DVR, making image adjustments and privacy zones set up quick and easy
  • Discrete design: An aesthetic dome design compliments the majority of internal applications
  • Dual voltage: The ability to use 12VDC or 24VAC power supplies increases flexibility in areas of use

Catalogue No:  VFDA28V12HDA-WCW
Brand:  Vista
Warranty:  3 Years
Lens supplied:  2.8-12mm F1.2-360 2MP
Rating:  IP30 & IK00
Resolution:  1080p (TVI/AHD) / 1000TVL (CVBS)
CCD Type:  1/2.9 Sony CMOS
