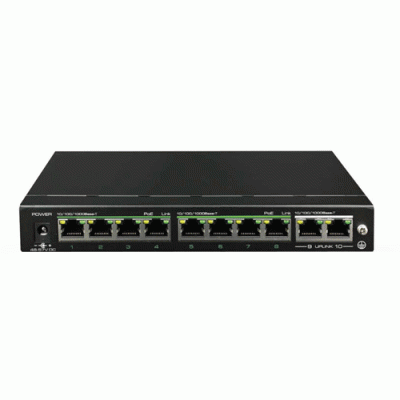

VueNet EasySwitch8 - 8ch Full Gigabit High PoweredPoE Switch

VueNet EasySwitch8 - 8ch Full Gigabit High PoweredPoE Switch

VN EasySwitch 8 Pro Switch provides 8 x 10/100/1000Mpbs - TX PoE ports with 2x 10/100/1000Mbps uplink ports designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, two Gigabit uplink Ethernet port. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key CCTV mode which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.

Key Features

• Main Function: Provide 8x10/100/1000Base-T Ethernet ports(PoE) ,2x 10/100/1000BASE-T Ethernet ports;
• Compliance with standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X, IEEE802.3af/at;
• PoE Power Supply: With 8x gigabit PoE RJ45 ports, each port supports max. 30W PoE output, whole machine reaches 120W PoE power output;
• One-key CCTV: Quickly achieve isolation among downlink ports via dial switch
• Protection: Support 6KV surge immunity, EFT testing standard;
• Operation: Plug & play, convenient to use, support desktop, wall-mounted installations. standard;
