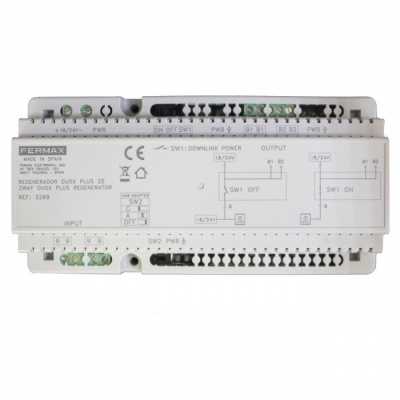

Fermax 3269 Duox Plus Regenerator

Fermax 3269 Duox Plus Regenerator

The DUOX PLUS 2S dual regenerator is an intermediate device for a DUOX installation, and it has the following features and functions:

Power Supply, Signal Distribution and Regeneration

The device allows two risers powered with a regenerated signal to be available (the same as when it is generated by the panel or the terminals). Risers only mode: The total consumption of devices (monitors and regenerator) must not exceed the source amperage (2.5A).

As an option, it also allows the panels to be powered as well. Risers and panels power supply mode: The total consumption of devices (monitors and panels and regenerator) must not exceed the source amperage (2.5A).

It is also possible to strengthen the signal accurately without the need to supply additional power. Signal regeneration mode: If the level of signal needs to be strengthened at an installation point, the regenerator can be used without an additional power supply.

Insulation

The equipment that is connected to each of the ports will not be affected by short circuits or other problems with the other ports.
