Fermax Skyline Frames 1V-8V

Fermax Skyline Frames 1V-8V
  Zoom
Variants: Frame 1V S1Variants: Frame 2V S2Variants: Frame 3V S4Variants: Frame 4V S5
Variants: Frame 5V S6Variants: Frame 6V S7Variants: Frame 7V S8Variants: Frame 8V S9
Our Price:  £31.28
List Price:  £46.00
Saving Of:  £14.72 (32%)
(Exc. 20% VAT)(£37.54 Inc. VAT)Catalogue No:  7341

Current Item:



Click for delivery info

+

Fermax

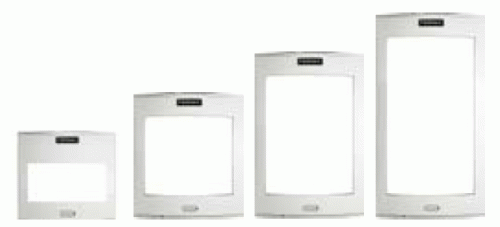

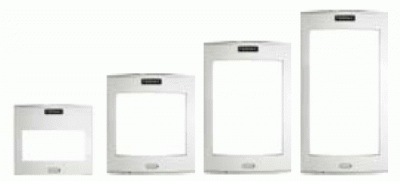

FERMAX SKYLINE FRAMES

The New SKYLINE electronic and video entry panel is a robust and elegant panel that stands out for its durability, beauty, resistance and reliability.

SKYLINE is a new line of modular composition continuous profile electronic and video entry outdoor panels from FERMAX. The line consists of 8 different-sized frames where the different modules can easily be fitted pushbuttons, card slots, camera, amplifier, access control, etc. The frames let you fit a given number of modules. There are two module sizes: V and W. W modules are twice as wide as the V modules.

Module Dimensions.

  • V module: 105,2x47,5 mm (width-height):
  • W module: 105,2x95 mm (width-height):

It is possible to combine two or more panels, as long as they are from the same series, to achieve greater capacity for pushbutton and accessories.

Technical Specifications

SKYLINE Frame 1V

Series 1 Panel.

  • Panel measurements: 130x128 mm (width-height):
  • Flush-fit box dimensions: 115x114x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x128x33 mm (height-width-depth).

SKYLINE Frame 2V

Series 2 Panel.

  • Panel measurements: 130x151 mm (width-height):
  • Flush-fit box dimensions: 115x138x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x151x33 mm (height-width-depth).

SKYLINE Frame 3V

Series 4 Panel.

  • Panel measurements: 130x199 mm (width-height):
  • Flush-fit box dimensions: 115x185x45 mm (height-width-depth).

SKYLINE Frame 4V.

Series 5 Panel.

  • Panel measurements: 130x246 mm (width-height):
  • Flush-fit box dimensions: 115x233x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x246x33 mm (height-width-depth).

SKYLINE Frame 5V.

Series 6 Panel.

  • Panel measurements: 130x294 mm (width-height):
  • Flush-fit box dimensions: 115x280x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x294x33 mm (height-width-depth).

SKYLINE Frame 6V.

Series 7 Panel.

  • Panel measurements: 130x341 mm (width-height):
  • Flush-fit box dimensions: 115x328x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x341x33 mm (height-width-depth).

SKYLINE Frame 7V.

Series 8 Panel.

  • Panel measurements: 130x389 mm (width-height):
  • Flush-fit box dimensions: 115x375x45 mm (height-width-depth).
  • Surface box dimensions: 130x389x33 mm (height-width-depth).

SKYLINE Frame 8V.

Series 9 Panel.

  • Panel measurements: 130x436,5 mm (width-height):
  • Flush-fit box dimensions: 115x420,5x45 mm (height-width-depth).
  • Surface box dimensions: 130x436,5x33 mm (height-width-depth).

Catalogue No:  7341
Brand:  Fermax
