Genie GHD232CP AHD 2.1MP 3.6mm PCB Camera 12V

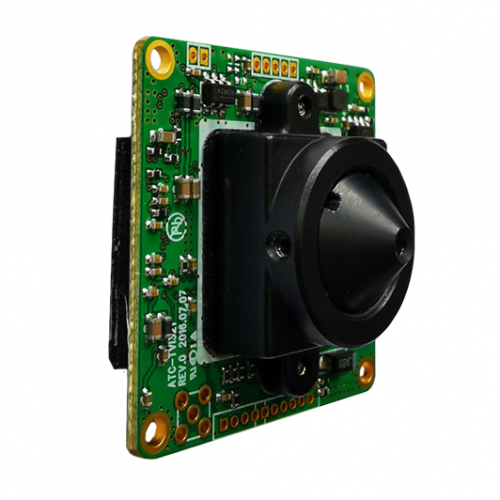

The Genie GHD232CP is a 2.1MP AHD PCB camera with a fixed board conical pinhole 3.6mm lens and 4-in-1 output.

Key Features

  • Sony 1/2.9” 2.19MP Progressive Scan CMOS
  • 1080p (1920x1080) @ 30 (25)fps
  • 4-in-1 output (AVI, TVI, CVI, CVBS)
  • Fixed Board Lens
  • Mechanical Day&Night
  • WDR, 3D DNR, Defog
  • UTC function supports OSD Control
  • Camera module
  • Conical pinhole lens
  • NDAA compliant
Specifications
Weight
0.06 kg
Image Sensor

1/2.9” Progressive Scan CMOS

Resolution

TVI, AVI, CVI : 1080p @ 30(25)fps /
720p @ 60fps (50fps) / 720p @ 30fps (25fps)
TV out : CVBS NTSC/PAL

Minimum Illumination

0.2Lux(F1.6, AGC33dB, DSS:x2)

Lens

Conical Pinhole Fixed Board Lens, 3.6mm, F 2.0

Angle of View

106.9˚ (D)x89.7˚ (H)x47.5˚ (V)

Shutter Speed

AUTO/FLICKER/MANUAL/ (1/30(25)~1/30,000)

Digital Slow Shutter (DSS)

OFF~ x32

Effective Pixel

1985(H) x 1105(V)

Video Output

AVI, TVI, CVI, CVBS

White Balance

AUTO/AUTO EXT/PUSH LOCK/MANUAL

WDR/BLC

OFF/BLC/HLC/WDR (4 Zones selectable)

D-WDR

OFF/LOW/MIDDLE/HIGH

Level

132.6dB

Auto Gain Control (AGC)

OFF~45dB

Day & Night

AUTO/COLOUR/B&W (Electronic D&N)

Noise Deduction

3D-DNR(OFF/LOW/MIDDLE/HIGH)

Motion Detection

OFF/ON(4 Zones)

Privacy Mask

16 Zones

Image Rotation

OFF/H-FLIP/V-FLIP/HV-FLIP

Defog

OFF/ON (AUTO/MANUAL)

Sharpness

0~10

OSD Control

UTC

Language

8 languages

Power Supply

DC12V(±10%)

Power Consumption

Max.140mA @ DC12V

Temperature Conditions

Operating: -10°C~+50°C
Storage: -20°C~+60°C

Dimensions

32x32mm

Datasheet
Product Attributes
Catalogue No
GHD232CP
Brand
Warranty
1 Year
Lens supplied
3.6mm
Resolution
1920 x 1080P 2MP
CCD Type
1/3" Sony 2MP CMOS
