Genie CCTV GCD1664HD 16 BNC to 64 BNC with PSU

Zoom

Our Price:	£461.42
List Price:	~~£542.85~~
Saving Of:	£81.43 (15%)

(Exc. 20% VAT)(£553.70 Inc. VAT)

–+

Catalogue No: GCD1664HD
Brand: Genie CCTV

Current Item:

Click for delivery info

Special Offer: Free delivery is available when you order £208.34 or more of selected products.

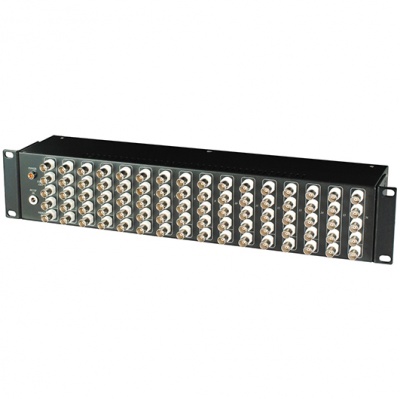

GCD1664HD : Coaxial Cabling HD-TVI / AHD / HDCVI / CVBS Video Distributor

GCD1664HD is designed to distribute 16 x CVBS or HD Analogue video signals to 64 video outputs. The GCD1664HD is built into a 19” standard 2U rack mounting cabinet. Suitable for large CCTV installations where there’s a need for multiple monitoring video feeds each input has 4 x 75Ω outputs.

Key Features

16 Video Inputs to 64 Video Outputs. (16 Sets 1 in 4 out Video Distributor)
Support HD-TVI, AHD, HDCVI, 960H, NTSC, PAL Video Signal.
Each Channel has One Output which Supports HD Video & Data Control Mode through the coax.
Video Input, Output, Power Input Built in TVS Protection.
Rack Mountable, 2U In Height.
Power Supply Included, DC 12V 1A
Power On/Off LED

MODEL NUMBER GCD1664HD

Video Input Channel BNC x 16, 75Ω, 1Vpp

Video Output Channel BNC x 64 75Ω, 1Vpp

Video Bandwidth 100MHz 0.1dB Gain Flatness

Power Supply DC12V 1.2Amp

Power Consumption 960mA (Typ), 1150mA (Max)

Temperature Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions (mm) 483 x 91.5 x 88.4

Weight (g) 2700
