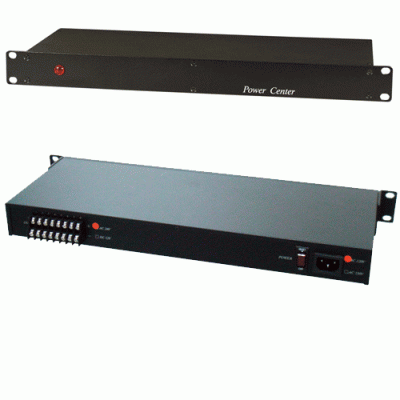

Genie CCTV GPR816-12R Rack Mount Power Supply

Product Overview

16-Port DC12V 8Amp Power Supply in 19-Inch Rack Mounting Panel 1U High, 16 x 500mA, Regulated Fuse Break Outputs, Mains 230V Input.

Features

  • 16 x Regulated 12V DC Outputs
  • 230V AC Input
  • Line Condition LED on Mains Input
  • Individual PTC (Positive Temperature Coefficient) Output Protection
  • Individual Current Protection
  • Automatic Reset Following Short Circuit Condition
  • Built-in “No Fuse” Break for Short Circuit Protection
  • Toroidal Transformer for High Efficiency and Low Temperature Operation
  • Standard 1U 19-inch Rack Mount
  • Supplied with Mains IEC Lead

Specification

 Model Number
 GPR816/12R
 Port 16
 Input Voltage 230VAC
 Output Voltage Regulated 12V DC @ 8A
 Output Current Nominal 500mA per Channel
 Output Trip Current 1A Per Port
 Output Current Protection 1.1A – Max. 2.5A for 4 Seconds
 Short Cut Time 0.2 Sec/ Port
 Surge Protection Built-in
 Resettable Output AUTO
 Resettable Output Time 1 Sec (Min)
 Total Output Current 8A (Max)
 Operating Conditions Temperature: -10°C ~ +45°C, Humidity: 30% ~ 80% RH
 Dimensions (W x H x D ) 437 x 170 x 44 mm
 Weight 4 Kg
