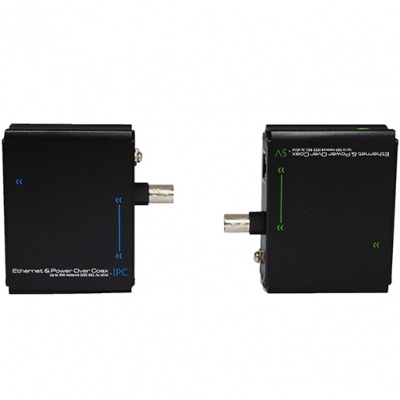

Genie GRMPOEOC Ethernet/PoE Extender Kit Over Coax or Cat5

Genie GRMPOEOC Ethernet/PoE Extender Kit Over Coax or Cat5
Our Price:  £124.96
List Price:  £147.00
Saving Of:  £22.04 (15%)
(Exc. 20% VAT)(£149.95 Inc. VAT)

Catalogue No:  GRMPOEOC
Brand:  Genie CCTV

Current Item:


Click for delivery info

Genie CCTV

Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

Genie GRMPOEOC Ethernet/PoE Extender Kit Over Coax or Cat5

Key Features

  • Consists of two parts, SV-Unit and IPC-Unit
  • Transmits Ethernet Signal and PoE Signal up to 500m on Coaxial Cable
  • Transmit Ethernet Signal up to 400m through Network Cables
  • Ethernet delay less than 1ms, point to point application
  • Standard: IEEE802.3 10BASE-T, IEEE802.3u, 100BASE-TX, IEEE802.3af
  • Circuit Isolation Protection
  • MIT Rack Mountable
  • Plug and Play, No Setting Required

Technical Specification

Ethernet Port EPOC: 0-100Mbps, Ethernet: 10/100Mbps (Transmission Bandwidth changes with Transmission Distance)
Transmission Distance EPOC Coaxial Cable: 0-500m EPOC Network Cable: 0-400m
Transmission Medium 75-5 Above Coaxial Cable and Cat5e/6
PoE Agreement Support IEEE802.3af, IEEE802.3at
PoE Power Supply Support End-Span and Mid-Span
Ethernet Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
Ethernet Delay <1ms
Indicator LED PoE IN/OUT Port:
One indicates PoE Power Supply or DC Power Status (RJ45 Yellow), One indicates Ethernet signal transmission(RJ45 Green) EPOC Port: indicates signal transmissiont (RJ45 Yellow/Green)
ESD 1a Contact Discharge Level 3 1b Air Discharge Level 3 Per: IEC61000-4-2
Communicating Port
Antithunder Protection
Per: IEC61000-4-5 Level 3
Working Temperature 0°C~55°C
Storage Temperature -40°C~85°C
Humidity 0~95% (Non-Condensing)
Power Supply PoE Power Supply or Power Adapter Supply
Voltage Range DC48V~57V
Consumption <2W
Dimension (L × W × H) 63.2 x 82 x 25 mm
Weight IPC: 153g, SV: 154g
