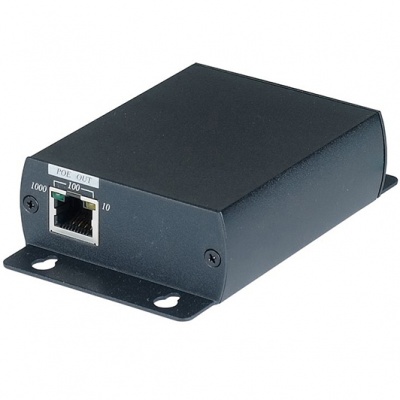

Genie IP04 PoE Repeater

Genie IP04 PoE Repeater
  Zoom
Our Price:  £89.26
List Price:  £105.00
Saving Of:  £15.74 (15%)
(Exc. 20% VAT)(£107.11 Inc. VAT)

Current Item:



Click for delivery info

+

Catalogue No:  IP04
Brand:  Genie CCTV

Genie CCTV

Genie IP04 PoE Repeater

PoE Repeater, Extends Power & Data >200m, IEEE802.3af Compatible, Passive Device, 10/100/1000BaseT

PoE repeater for extending power and data an additional 100 metres. A maximum range of 400 metres is possible using multiple repeaters, eliminating the need for additional switches, hubs and expensive fibre installations. It complies with the PoE IEEE802.3af standard.

Key Features

  • Extends Both Power & Data (100 Metres)
  • Maximum Range up to 400 Metres Using Multiple Repeaters
  • No External Power Requirement
  • Compatible with the IEEE 802.3af PoE Standards (Active)
  • Supports 10/100/1000 BaseT Transmission Rates
  • Built-In LED Status Indication
  • Plug & Play for Easy Installation

Technical Specification

MODEL NUMBER IP04
Power & Data Input RJ-45
Power & Data Output RJ-45
Data Link Pins 1, 2, 3, 6
Power Link Pins 1, 2, 3, 6
Transmission Range 100 Metres
LED Indication Power : Blue
Link Speed : Yellow, Green
PoE IEEE 802.3af Standard, DC48V 400mA 12.95W
Power Consumption 2.2W (Max.) Based On 10/100 BaseT 5W (Max.) Based On 1000
BaseT
Temperature Operation : 0 to 55°C
Storage : -20 to 85°C
Humidity : Up To
95%
Dimensions (W x H x D) 130 x 67 x 27 mm
Weight 170g
