Genie CCTV HDC222 HDSDI 2.1MP camera body no lens

Genie CCTV HDC222 HDSDI 2.1MP camera body no lens
Catalogue No: HDC222
£169.15
£220.50
Saving Of
£51.35 (23%)
(Exc. 20% VAT)
(£202.98 Inc. VAT)
–
+
Genie CCTV
Information

Genie CCTV HDC222 HDSDI 2.1MP camera body no lens

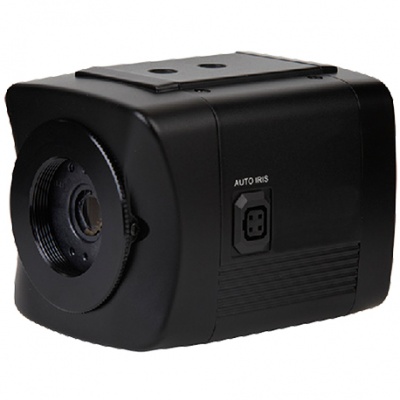

The Genie HDC222 is a 2.1MP HD-SDI box camera with a 6-in1 output (AVI, TVI, CVI, EX-SDI, HD-SDI and CVBS).

Key features

  • Sony 1/2.8” 2.13MP Progressive Scan SONY Starvis CMOS
  • 1080p (1920 x 1080) @ 30(25)fps
  • 6-in-1 Output(AVI, TVI, CVI, EX-SDI, HD-SDI, CVBS)
  • C/CS Mount for lens
  • Mechanical Day & Night
  • WDR, 3D DNR, Defog
  • UCC, UTC function supports OSD Control
Specifications
Weight
0.25 kg
Image Sensor

1/2.8” Progressive Scan SONY Starvis CMOS

Resolution

HD-SDI / EX-SDI1.0 / EX-SDI2.0 / AVI /TVI / CVI :
1080p @ 30fps (25fps)/ 720p @ 60fps(50fps) / 720p @ 30fps (25fps)

TV out : CVBS NTSC / PAL

Electronic Shutter

AUTO / FLICKER / MANUAL /(1/30(25)~1/30,000)

Digital Slow Shutter (DSS)

OFF~ x32

Minimum Illumination

0.03Lux (F1.2, ICR OFF, AGC33dB, DSS:x2)

Lens

C/CS Mount lens, depends on lens

Effective Pixels

1945(H) x 1097(V)

White Balance

AUTO / AUTO EXT / PUSH LOCK /MANUAL

WDR/BLC

OFF / BLC / HLC / WDR15P / WDR30P (4 Zones selectable)

Auto Gain Control (AGC)

OFF~45dB

Day & Night

AUTO / COLOUR / B&W (Electronic D&N)

Noise Deduction

3D-DNR (OFF / LOW / MIDDLE /HIGH)

Motion Detection

OFF / ON (4 Zones)

Privacy Mask

16 Zones

Image Rotation

OFF / H-FLIP / V-FLIP / HV-FLIP

Defog

OFF / ON (AUTO/MANUAL)

Sharpness

0~10

Language

8 languages

Video Output

HD-SDI / EX-SDI1.0 / EX-SDI2.0 / AVI / CVI / TVI / CVBS

OSD

Built in (UTC & 5-Key)
UTC : AVI/TVI/CVI only

Operating Temperature

-10°C~+50°C

Storage Temperature

-20°C~+60°C

Power Source

12VDC (±10%)

Power Consumption

Max.130mA @ 12VDC

Dimension

58 x 58 x 70.5 mm

Weight

180g

Datasheet
Product Attributes
Catalogue No
HDC222
Brand
Genie CCTV
