Genie CCTV HDMC221CPV2 HD-SDI Miniature Cased PCB Cameras

Genie CCTV HDMC221CPV2 HD-SDI Miniature Cased PCB Cameras
Catalogue No: HDMC221CPV2
£131.75
£141.95
Saving Of
£10.20 (7%)
(Exc. 20% VAT)
(£158.10 Inc. VAT)
–
+
Genie CCTV
Information

Genie CCTV HDMC221CPV2 HD-SDI Miniature Cased PCB Cameras

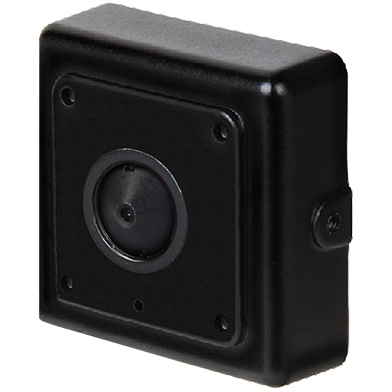

The Genie HDMC221CPV2 is a 2.1MP HD-SDI encapsulated camera with a 4.3mm conical pinhole lens.

Key Features

  • 1/2.8” Progressive Scan CMOS
  • 1080p (1920x1080) @ 30 (25)fps
  • EX-SDI/HD-SDI/CVBS output
  • Conical pinhole lens 4.3mm
  • Electronic Day & Night
  • WDR, 3D DNR, Defog
  • RS485 or AD KEY
  • 30x30mm Mini square camera
Specifications
Weight
0.17 kg
Image Sensor

1/2.8” SONY Exmor R Progressive Scan CMOS

Resolution

HD-SDI/EX-SDI1.0_2.0_2.1: 1080p @ 30fps (25fps) / 720p @ 60fps (50fps) / 720p @ 30fps (25fps)
TV out: CVBS NTSC / PAL (720H)

Electronic Shutter

AUTO / FLICKER / MANUAL / (1/30(25)~1/30,000)

Digital Slow Shutter (DSS)

OFF~ x32

Minimum Illumination

0.2 Lux (F2.0, AGC33dB, DSS:x2)

Lens

4.3mm

Effective Pixels

1945(H) x 1097(V)

White Balance

AUTO/AUTO EXT/PUSH LOCK/MANUAL

Level

135.6dB

D-WDR

Off/On

WDR/BLC

OFF/BLC/HLC/WDR

Auto Gain Control (AGC)

OFF~45dB

Day&Night

AUTO/COLOUR/B&W (Electronic D&N)

Noise Deduction

3D-DNR (OFF/Low/Middle/High)

Motion Detection

OFF/ON (4 Zones)

Privacy Mask

16 Zones

Image Rotation

OFF/H-FLIP/V-FLIP/HV-FLIP

Defog

OFF/ON(AUTO/MANUAL)

Sharpness

Adjustable (0~10)

OSD Control

Cable JOYSTIC, RS-485 Control (Option)

Language

8 languages

Video Output

HD-SDI/EX-SDI1.0/EX-SDI2.0/EXSDI2.1/CVBS

Power Supply

DC12V (±10%)

Power Consumption

Max.150mA @ DC12V

Temperatue

-10°C~+50°C (Operating)
-20°C~+60°C (Storage)

Dimensions

30 x 30 mm

Weight

Approx.28.9g (Board lens)

Datasheet
Product Attributes
Catalogue No
HDMC221CPV2
Brand
Genie CCTV
Delivery
3-4 Weeks
