Genie CCTV HXMB22MPV2 EX-SDI 2.2MP Mini Bullet Camera with 3.6mm lens

Genie CCTV HXMB22MPV2 EX-SDI 2.2MP Mini Bullet Camera with 3.6mm lens
Genie CCTV HXMB22MPV2 EX-SDI 2.2MP Mini Bullet Camera with 3.6mm lens
Catalogue No: HXMB22MPV2
£138.33
£162.75
Saving Of
£24.42 (15%)
(Exc. 20% VAT)
(£166.00 Inc. VAT)
–
+
Genie CCTV
Information

Genie CCTV HXMB22MPV2 EX-SDI 2.2MP Mini Bullet Camera with 3.6mm lens

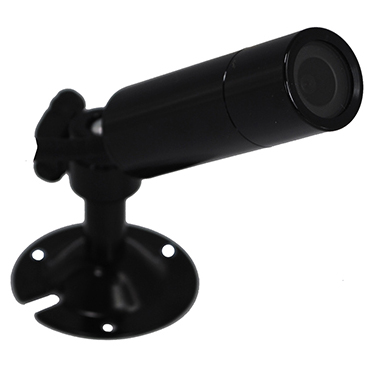

The Genie HXMB22MPV2 is a 2.2MP HD-SDI miniature bullet camera with 3.6mm lens.

Key Features

  • 1/2.8” Progressive Scan CMOS
  • 1080p (1920x1080) @30 (25) fps
  • HD-SDI (100m @ RG59) / EX-SDI 1.0 (300m @ RG59) / CVBS
  • 3.6mm fixed lens
  • Electronic Day & Night
  • 3D DNR, Defog
  • IP67
Specifications
Image Sensor

1/2.8” Sony Exmor R Progressive Scan CMOS

Resolution

HD-SDI/EX-SDI 1.0: 1080p @ 30fps (25fps) / 720p @ 60fps (50fps) / 720p @ 30fps (25fps)
TV out: CVBS NTSC/PAL

Electronic Shutter

AUTO / FLICKER / MANUAL /(1/30(25)~1/30,000)

Digital Slow Shutter (DSS)

OFF~ x32

Minimum Illumination

0.1 Lux (F2.0, AGC20dB, DSS:x2)

Lens

3.6mm fixed lens, F 2.0

Angle of View

112.3 (D) x 93.7 (H) x 49.3° (V)

Effective Pixels

1945 (H) x 1097 (V)

White Balance

AUTO/PUSH LOCK/MANUAL

WDR/BLC

OFF/BLC/HLC

Auto Gain Control (AGC)

OFF~42dB

Day & Night

AUTO/COLOUR/B&W (Electronic D&N)

Noise Deduction

3D-DNR (OFF/LOW/MIDDLE/HIGH)

Motion Detection

OFF/ON (4 Zones)

Privacy Mask

16 Zones

Image Rotation

OFF/H-FLIP/V-FLIP/HV-FLIP

Defog

OFF/ON (AUTO/MANUAL)

Sharpness

Adjustable 0~10

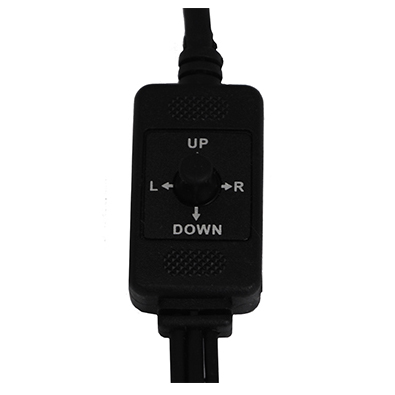

OSD Control

Joystick, RS-485 Control

Language

4 languages

Video Output

HD-SDI/EX-SDI1.0/CVBS

Ingress Protection

IP67

Temperature

Operating: -10°C~+50°C
Storage: -20°C~+60°C

Power Source

DC12V (±10%)

Power Consumption

Max. 190mA @ DC12V

Dimension

23 x 75.85 mm

Weight

Approx. 90g

Datasheet
Product Attributes
Catalogue No
HXMB22MPV2
Brand
Genie CCTV
Rating
IP67
Resolution
2MP
