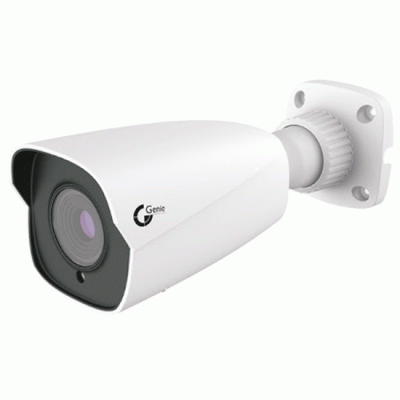

Genie PWIP4NBVAF 5MP 12VDC PoE 2.8-12mm 50m IR Autofocus Camera NDAA

Catalogue No:
PWIP4NBVAF
£108.11
£124.95
Saving Of
£16.84 (13%)
(Exc. 20% VAT)
(£129.73 Inc. VAT)
+
Genie CCTV
Information

Genie PWIP4BVAF 5MP 12VDC PoE 2.8 - 12mm VF 50m IR Autofocus Camera

The Genie PWIP4BVAFG are 4MP IP IR bullet cameras with a 2.8-12mm varifocal auto focus lens. The cameras also feature up to 50m IR night view distance as well as being IP67.

Key Features

  • NDAA compliant
  • 4MP (2560 x 1440) H.265 coding
  • Maximum resolution: 2560 x 1440
  • ICR auto switch, true day / night, ROI coding
  • 3D DNR, digital WDR, HLC, BLC, defog
  • 30~50m IR night view distance
  • Supports remote monitoring by smart phones and tablet PCs with iOS and Android OS
  • DC12V / PoE power supply
  • IP67 ingress protection
  • Supports three streams
  • Intelligent analytics : Object removal detection, abnormal video signal detection, line crossing detection and region intrusion
    detection
Specifications
Image Sensor

1 / 2.7 “CMOS

Image Size

2560 x 1440

Electronic Shutter

1 / 25 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Minimum Illumination

0.011 Lux @ F1.2, AGC ON,
0 Lux with IR
0.04 Lux @ F2.26, AGC ON,
0 Lux with IR

Lens

2.8~12mm @ F1.4, Horizontal field of view: 94°~35.7°

Lens Mount

M12 or Φ14 optional

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°,Tilt: 0°~90°, Rotation: 0°~360°

Video Compression

H.265, H.264

H.265 Compression Standard

Main Profile @ Level 4.1 High Tier

Resolution

4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720),
D1, CIF, 480 x 240

Main Stream

60Hz: 4MP, 3MP, 1080p (1~30fps)
50Hz: 4MP, 3MP, 1080p (1~25fps)

Sub Stream

60Hz : 720p (1~15fps), D1 (1~30fps), CIF (1~30fps)
50Hz: 720p (1~12fps), D1 (1~25fps), CIF (1~25fps)

Bit Rate

64 Kbps ~ 5 Mbps

Bit Rate Type

VBR / CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Supports simultaneous monitoring for up to 4 users. Supports multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

Onvif compatible

Intelligent Analytics

Region intrusion detection, Object removal detection, Abnormal video detection, Line crossing detection

Smart Alarm

Motion detection

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection

PoE

Yes

IR Distance

30 ~ 50 m

Network Interface

RJ45

Video Output

No

Audio

No

Storage

No

Hardware Reset

No

Ingress Protection

IP67

Power Supply

DC12V / PoE

Power Consumption

< 9W

Operating Environment

– 30°C ~ 60°C (-22°F~140°F), Humidity: Less than 95 % (Non-condensing)

Datasheet
Product Attributes
Catalogue No
PWIP4NBVAF
Brand
Warranty
2 Years
Lens supplied
2.8-12mm autofocus
IR Illumination
50 Meters
Rating
IP67
Resolution
4MP 2560x1440
CCD Type
1/2.7" CMOS
Compression
H.265 - H.264
Record Rates
25fps
