GJD GJDELITE Elite 12V External PIR

Catalogue No:
GJDELITE
Currently Unavailable
(Exc. 20% VAT)
+
GJD
Information

GJD022/3 Elite 12V External PIR

The Elite offers a high level of adaptability. There are seven different modes of operation, giving various permutations of normally open and normally closed arrangements for the two volt-free relays, plus a selection of timing and functional options for the relay changeover contacts.

Other programmable parameters include the duration of timed changeover, a pulse count feature and a choice of detection ranges from 10 to 35 metres.

Specifications

DETECTION AREA

10 to 35 metres (adjustable) up to 750 sq metres

COVERAGE

90 degree 35 metres x 30 metres max

ADJUSTMENT

180 degree pan + 90 degree tilt

FRESNEL LENS

36 zone - white light filter

CUSTOMISED OPTICS

Double silicon shielded dual element eliminates 50,000+ lux  of white light

OUTPUTS

Silent solid state magnetically immune

ALARM 1 ‘CCTV’

Volt free relay signal contact @ 24VAC/DC @ 50mA with an  integral 30Ohm series resistor. Selectable normally open/ normally closed. Adjustable timer options: 0.4 to 60 seconds

ALARM 2 ‘VIDEO’

Volt free relay signal contact @ 24VAC/DC @ 50mA.  Selectable normally open/normally closed with an integral  30 ohm series resistor. Adjustable timer options: 2 to 60  seconds

ALARM 3 ‘A’

Open collector negative switching - 25mA max. Alarm  period 400ms

ALARM 4 ‘S’

Open collector negative switching - 25mA max. Alarm  period: Detection + 60 seconds

Adjustable: Dusk (2 lux) to 24 hour

POWER INPUT

9 to 15VDC

CURRENT

10mA (12V nominal)

PULSE COUNT

1,2,3 & 4 previous detection ≤ 6 seconds

TAMPER

Opens for 2 seconds when cover removed and / or ‘A’ &  ‘S’ outputs pulse for 60 seconds (programmable)

TEMPERATURE COMPENSATION

Digital sensitivity adjustment

OPERATING TEMPERATURE

-20 to +55ºC

HOUSING

High Impact ABS

PROTECTION RATING

IP55

DIMENSIONS

104 x 100 x 100mm

WEIGHT

145 grams

MOUNTING HEIGHT

Variable - optimum height 3 metres

CABLE UP TO 200 METRES  UP TO 500 METRES

Utilising all four outputs - 8 core 7/0.2mm

Utilising all four outputs - 8 core 16.0.2mm

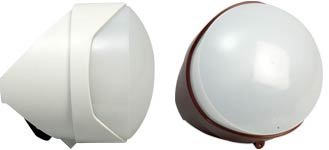

PART NUMBER (BURGUNDY)

GJD022

PART NUMBER (WHITE)

GJD023

Datasheet
Product Attributes
Catalogue No
GJDELITE
