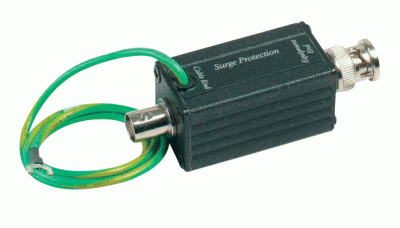

Genie CCTV GSP01HD Coaxial Surge Protector BNC Male to BNC Female

Genie CCTV  GSP01HD Coaxial Surge Protector BNC Male to BNC Female
  Zoom
Our Price:  £14.73
List Price:  £17.33
Saving Of:  £2.60 (15%)
(Exc. 20% VAT)(£17.68 Inc. VAT)Catalogue No:  GSP01HD

Current Item:



Click for delivery info

+

Genie CCTV

GSP01 Coaxial Surge Protection Device

Product Overview

Coaxial Surge Protection Device, BNC Male to BNC Female.

Key Features

  • Protects equipment from high voltage surges, e.g. nearby lightning strikes.
  • Two stage protection: under100ns – 90V, over 100ns-12V.
  • Wide range of applications: CCTV, Television Antenna, Multiplexers & Quads, VCR, DVR etc.

These devices provide protection from high voltage surges such as nearby lightning strikes. The devices shunt high voltage transients to ground and prevent them from passing onto sensitive electronic equipment such as VCR’s, DVR’s, Cameras and Multiplexers

Technical Specification

Model Number
GSP01
 Protection Attack Time 100 ns
 Maximum Surge Current 5000A
 Life 300 Surges of 100Amps
 Normal Resistance Across Coax 10,000 M Ohm
 Surge Resistance Approx. 0 Ohm
 Power Passing Capability DC 90V AC 90Vp-p 65V rms @ 10 Amps
 Insertion Loss Less than 0.2 dB
 Return Loss (75 Ω) 16dB
 Connectors BNC
 Dimensions (W x H x D ) 25 x 25 x 78mm
 Weight 80g

Catalogue No:  GSP01HD
Brand:  Genie CCTV
