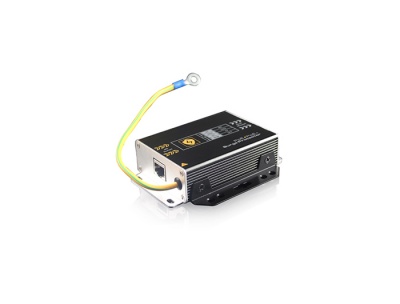

Genie GSP1000 Gigabite PoE Surge Protector

Genie GSP1000 Gigabite PoE Surge Protector
  Zoom
Our Price:  £35.81
List Price:  £39.00
Saving Of:  £3.19 (8%)
(Exc. 20% VAT)(£42.97 Inc. VAT)
–+

Catalogue No:  GSP1000
Brand:  Genie CCTV

Current Item:



Click for delivery info

Genie CCTV

Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

Genie GSP1000 Gigabite PoE Surge Protector

Key Features

  • Based on IEC61643-21:2000 Standard
  • PoE and PoE+ Protection , Compatible with End-span and Mid-Span
  • Multi Level Protection and quick reacting time
  • Extend line to ground for grounding mode
  • Aluminum Casing
  • Clearly Marked
  • Simple Installation

Technical Specification

Rated working voltage 48V
Maximum continuous working 57V
Nominal Discharge 5KA
Maximum Discharge 10KA
Limiting Voltage Between corewire-corewire ≤ 68V
corewire-earth ≤ 500V
Insulation Resistance ≥ 0.4M
Data Rate (Max) ≤ 0.5 dB
Transmission Rate 1000 Mbps
Reacting Time ≤ 1ns
Protective lines 1/2,3/6,4/5,7/8
Working Temperature 0°C to 55°C
Storage Temperature -20°C to
Humidity (Non-Condensing) 0-95%
Weight 157g
Dimensions (L x W x H) 105mm x 52mm x 28mm (Includes Interface Length)
Outershell Aluminium
MTBF >30000h
