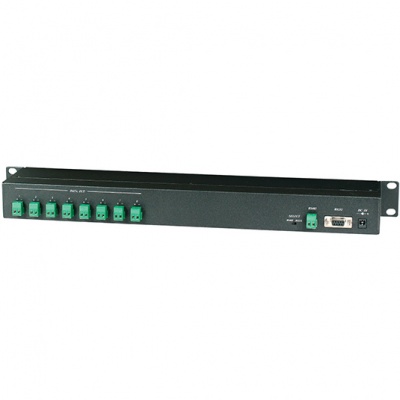

Genie CCTV RS008 Serial Star Wired Data Distributor

Genie CCTV RS008 Serial Star Wired Data Distributor
  Zoom
Our Price:  £108.88
List Price:  £128.10
Saving Of:  £19.22 (15%)
(Exc. 20% VAT)(£130.66 Inc. VAT)
+

Catalogue No:  RS008
Brand:  Genie CCTV

Current Item:



Click for delivery info

Genie CCTV


Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

RS008 Data Transmission

Product Overview

Serial Star Wired Data Distributor, 1 x RS232 or 2 x RS485 Input, 8 x RS485 Isolated Outputs, 1U High, 19-Inch Rack Mounting Panel, DC12V 350mA, Built-In Surge Protection, Power Supply Included.

Key Features

  • Serial Star-Wired Data Distributor
  • 1 x RS232 Input and 2 x RS485 Inputs; Only one Can be Active
  • Transmits/Receives up to 1200m with Twisted Pair Cable
  • Built-In Surge Protection
  • Inputs and Outputs are Isolated
  • Can be Cascaded to other Serial Distributors
  • 19-Inch Rack Mounting Unit, 1U in Height
  • DC12V Regulated Power Supply Included

Technical Specification

Model Number
 RS008
 Data Inputs 1 x RS232 & 2 x RS485 Terminal Block
 Data Output  8 x RS485 Terminal Block
 Data Output Interface RS485
 Power Supply  DC12V
 Power Consumption 350mA
Operating Temperature 0 ~ 45°C
 Dimensions (W x H x D ) 482 x 44 x 100mm
 Weight 1050g
 Material Black Metal Case
