Genie CCTV Wish IP H.265 WNVRN18P5 8 CH NVR 8MP with PoE NDAA compliant

Genie CCTV Wish IP H.265 WNVRN18P5 8 CH NVR 8MP with PoE NDAA compliant
Catalogue No: WNVRN18P5
£225.26
(Exc. 20% VAT)
(£270.31 Inc. VAT)
–
+
Genie Certified Surveillance Hard Drive 3.5'' Sata - 1TB
Genie Certified Surveillance Hard Drive 3.5'' Sata - 2TB
Genie Certified Surveillance Hard Drive 3.5'' Sata - 4TB
Genie Certified Surveillance Hard Drive 3.5'' Sata - 6TB
Genie Certified Surveillance Hard Drive 3.5'' Sata - 8TB
Genie Certified Surveillance Hard Drive 3.5'' Sata - 10TB
Genie CCTV
Information

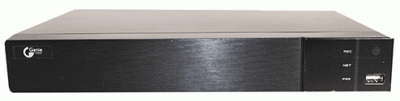

Genie CCTV Wish IP H.265 WNVRN18P5 8 CH NVR 8MP with PoE NDAA compliant

The Genie WNVRN18P5 is an 8 channel high definition 8MP network video recorder that features 8 channel simultaneous playback as well as 8 PoE network ports with IPC direct connection to the NVR. The NVR can support the latest H.265 bandwidth and has a dedicated iPhone and Android App (Super Live Plus) as well as being supplied with free Windows / MAC CMS software.

  • Support 8CH 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280×1024 / 960p / 720p / 960H / DI / CIF IP video input
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
  • Search : time slice, time, event, tag, smart search
  • Playback : 8CH simultaneous playback Support multiple VCA (Video Content Analytics) events, such as object abandoned / missing, region intrusion, tripwire, video exception, etc.
  • Support POS information overlay on live view and playback
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
  • DHCP, DDNS, PPPoE network protocol
  • Multi-user online simultaneously
  • 8 PoE network ports, IPC can be directly connected to NVR, PoE power supply supported
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Authorisation management, log view and device status view
  • 4K output, true high resolution display
  • Support NAT function and QR Code scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Android OS
  • NDAA compliant
Specifications
Weight
2.34 kg
System OS

Embedded Linux

Video Network Input

8CH IPC input

Network Input Resolution

8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/960H/D1/CIF

Output

HDMI x 1: 3840×2160 / 1920×1080 / 1280×1024 / 1024×768
VGA: 1920×1080 / 1280×1024 / 1024×768

Audio Network Input

8 channel IPC audio input

Two Way Audio

RCA x 1

Audio Local Output

RCA x 1

Compression

H.265S /H.265+ / H.265 / H.264

Record Resolution

8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/960H/D1/CIF

Mobile OS

iOS, Android

Storage

HDD : SATA3.0 × 1, max 10TB

Simultaneous Playback

8 channel max.

Search

Time slice / Time / Event / Tag search / Smart Search

Smart Search

Highlight colours to display the camera record in a certain period of time, different colours refer to different record events

Function

Play, Pause, FF, FB, Digital zoom, etc

Decoding Capability

1CH 8MP, 4CH 1080p Live View / Playback

Remote Monitoring

Immix: Compatible with Immix via RTSP only (2-way audio not supported)
Sentinel: Yes, Firmware 1.1.0 or later

Network Interface

RJ 45 × 1 (10/100/1000Mbps)

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.

Incoming / Outgoing Bandwidth

80/80 (Mbps)

Client Connection

Max. 10 users access

Alarm Mode

Manual, Sensor, Motion, Exception

Alarm Input

Support IPC alarm input

Alarm Output

Support IPC alarm output

Triggering

Record, Snap, Preset, E-mail, etc.

Local Backup

USB stick, USB mobile HDD

USB Port

USB 2.0 x 2

Remote Controller

Optional

PoE Ports

100M RJ45 × 8

PoE

Standards: IEEE802.3AF/AT
Output Power: ≤ 96W

Power Supply

DC 48V/2.5A

Consumption

≤ 10W ( without HDD )

Dimensions

300 × 249 × 45 mm

Working Environment

-10°C~50°C, 10%~90% humidity

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, REACH and WEEE

Datasheet
Product Attributes
Catalogue No
WNVRN18P5
Brand
Genie CCTV
