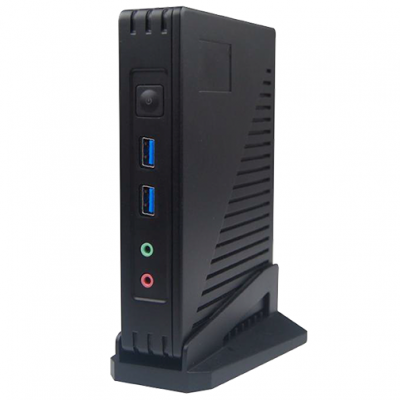

Genie CCTV WMP300 Intergrated Management Server for NVR, Tablet, ANPR & Facial Recognition Devices - Intel® Pentium 4405U

Catalogue No: WMP300
Saving Of
£165.40 (15%)
(Exc. 20% VAT)
(£1,124.52 Inc. VAT)
Genie CCTV

Genie CCTV WMP300 Intergrated Management Server for NVR, Tablet, ANPR & Facial Recognition Devices - Intel® Pentium 4405U

The Genie WMP300 is a management server specifically designed and developed for security surveillance application. Its software is installed before delivery and combines management, video preview and intelligent applications. Due to its simple deployment, flexible expansion, powerful performance and high reliability, it can meet the requirements of medium and small-sized security systems.

Key features

  • Device Access
  • Resource Management
  • Device Configuration
  • User Management
  • Snapshots
  • Live View
  • Two-way Talk and Broadcast
  • PTZ Control
  • Record Playback and Backup
  • Alarm
  • Line Crossing Counting
  • Decoding On TV Wall
  • Electronic Map
  • Face Surveillance
  • Face Greeting
  • Parking Lot Management
  • Others
0.47 kg

Intel® Pentium 4405U



Graphics Card

Integrated Graphics, Intel® HD Graphics 510

Operation System



NVMS standard (custom)

Decoding Capability

4CH 8MP or 6CH 5MP or 8CH 4MP or 14CH 1080P or 33CH 720P or 36CH D1 (or lower)

Max. Number of Channel Access


Max. Number of Device Access

64 NVRs/FR Servers

AI Capability

Support the integrated management of face detection IPCs, face match servers, face recognition terminals, face match NVRs, ANPR cameras

Support face detection, image search by face image, track playback, allow list and block list alarm as well as stranger alarm

Support face attendance, face greeting, people counting, parking lot management


Support local GUI access; external mouse, keyboard and monitor; multi-monitor display


Private protocol, SDK, ONVIF, RTSP

Live View

Support multi-screen display mode; support customised screen display mode, corridor mode, channel group auto-switch, stream self-adaption, manual record and snapshot

Record Playback

Support search record by time period, time slice, time and tag; support synchronous or asynchronous playback; support record backup

Alarm Linkage

Support triggering message popup, audio, live view window, recording with tag, decoding on TV Wall

PTZ Control

Zoom in, zoom out, preset, cruise, 3D control

System HDD


Data HDD


HDMI Output


VGA Output

1 VGA @ 1080p

Audio Output

1CH Line out

Ethernet Interface

1x RJ45 10M/100M/1000M self-adaptive Ethernet port

USB Interface

6 USB ports: USB 3.0×2 (front panel, USB 2.0×2 (rear panel), USB 3.0×2 (rear panel)


1xM.2 2230 (optional)


DC 12V/3A

Power Consumption


Working Temperature

-5°C – +45°C

Storing Temperature

-20°C- +70°C

Working Humidity

10% – 95%


154 × 120 × 30 mm
