CDVI CDV4791-DX-B 2Easy 2 wire hands free wifi Door Entry kit

The 2EASY kits from CDVI offer convenient and high quality audio entry.

Connection throughout is 2-wire, non polarised, so installation and maintenance is simple and straightforward.

The CDV47DX now includes Wi-Fi connection and a new mobile app allowing users to control access from their phone by receiving calls or remotely releasing multiple locks.

Robust door stations with stylish handsets - it all adds up to a sophisticated and flexible audio entry system.

Single call button, system design tips:

Single call button systems only support 1 X CDV47DX wi-fi monitor - for additional monitors please select from list of compatible part numbers below

  • CDV-47-B Black matching 7" touchscreen hands free monitor non wi-fi
  • CDV-47-W White matching 7" touchscreen hands free monitor non wi-fi

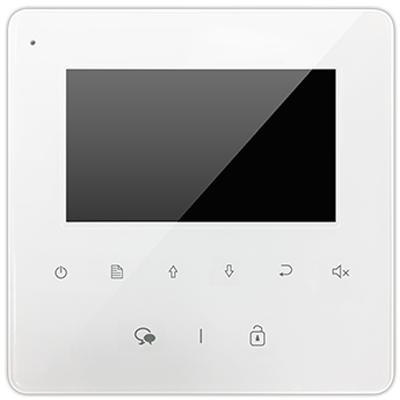

  • CDV-43 (4.3" hands free monitor, neat design with touch buttons built in only available in white)
  • CDV-24 (4" wall mounted monitor with handset on coiled wire ideal for noisy environments only available in white)
  • CDV-17HFA (Audio only hands free unit ideal for lesser used areas i.e. attic landing, garden shed etc.

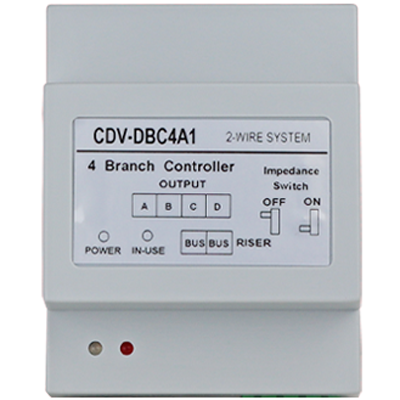

Don't forget, if you order additional monitors you should order a 4 way distributor for systems up to 4 monitors in total - part No. CDV-DBC4A

For wiring diagrams, see below

For larger systems with multiple call buttons, please call us for design support

Overview

  • Black or white monitor
  • Simple, stylish door station
  • 2-wire connection
  • Expandable
  • Compatible with 2Easy video system
  • Mobile app available on Android and IOS - Free of charge operation (no monthly or yearly subscription fees)

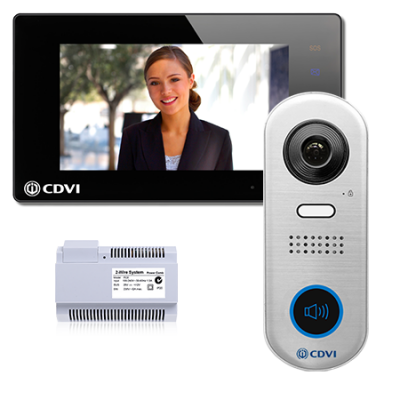

CDV4791 Kit Includes

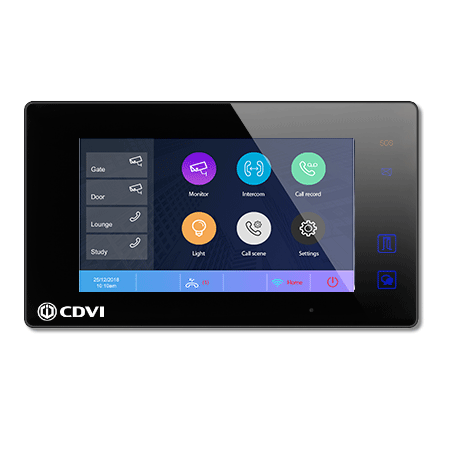

  • CDV47DX Touch screen wifi 7 inch monitor - black or white cover
  • CDV91S VR door station
  • CDV-PC6 PSU

Wiring is simple

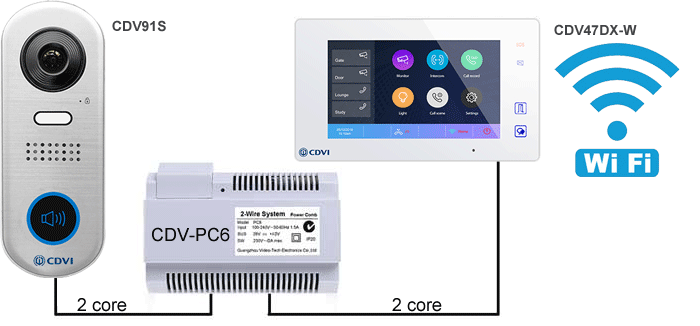

CDVI 2Easy simple wiring diagram

Adding extra parts

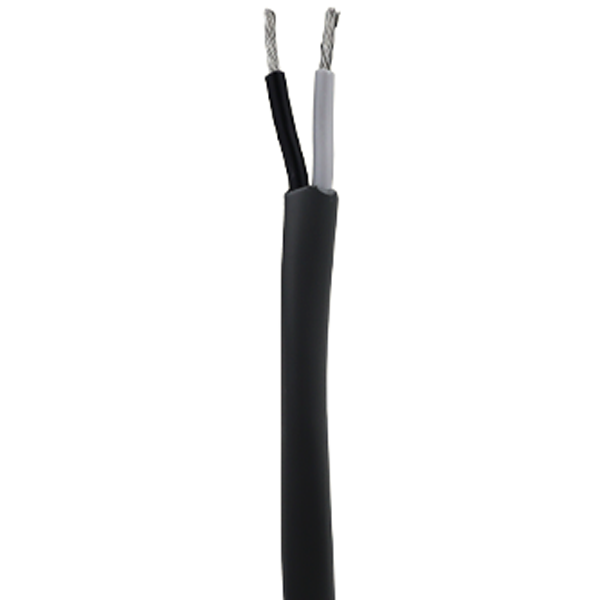

Adding extra monitors simply daisy chain up to 3 monitors in a row if you are using 1mm thick Beldon cable. If not and if you need more monitors still use the CDV-DBC4A which provides 4 outputs for 4 monitors cabled back to the DBC4A

Adding additional entrances can be achieved simply by adding a 4 way DBC4A and up to three additional call points.

It goes without saying that value for money is extremely important when spending for security needs. The 2Easy system offers you the maximum of flexibility to get real value from your investment.

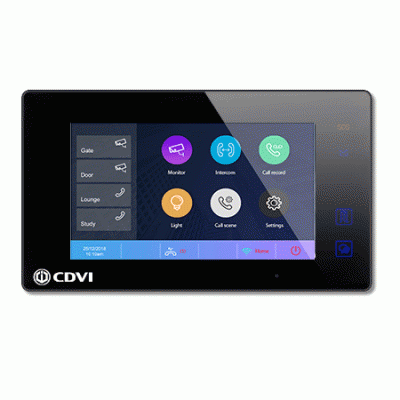

The CDV47 is a stylish 7” colour LCD monitor with touch screen technology. With dimensions of just 132 x 226 x 18mm, the unit will match any decor.
Advanced touch sensitive technology makes the operation simple. The monitor is supplied as standard with caller memory and electronic photo frame function, requires SD memory card sold separately.

Wiring example

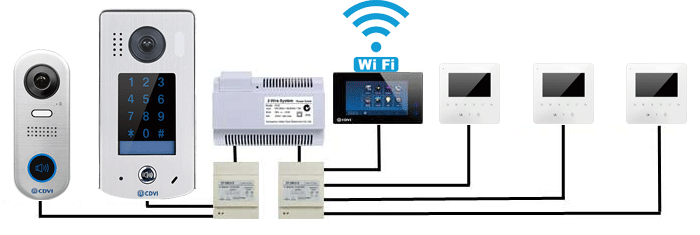

CDVI 2Easy multiple units wiring diagram

2 Doors to 4 monitors using 2 core cables

Diagram shows 2 X CDV91-SF connected to CDV-DBC4A connected to CDV-PC6 output to CDV-DBC4A with 4 X CDV47 monitors

Other combinations can be used to achieve any configuration required up to 4 entrances maximum, you can only use 1 wifi monitor on a 1 call button system however you can combine different monitors and even use audio only for lesser used locations, i.e. in the loft.
