CDVI CDV-47W 2Easy 2 wire 7" slim touch screen monitor

Catalogue No: CDV-47W

£165.47

~~£248.30~~

Saving Of

£82.83 (33%)

(Exc. 20% VAT)

(£198.56 Inc. VAT)

Delivery info

–

1 Pair 16AWG Belden 8471 Cable for 2Easy 100m

+ £121.10

Information

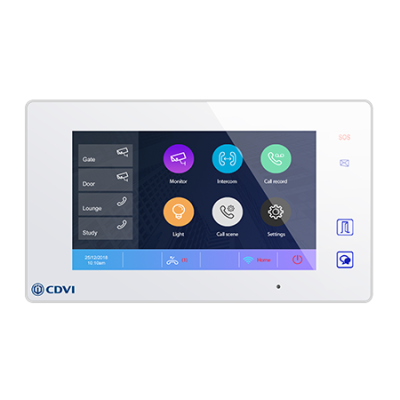

CDVI CDV47-W 2Easy 2 wire 7" slim touch screen monitor

The CDV-47 is a 2-wire, 7-inch digital colour, TFT monitor with touch screen and picture/video memory. The 2EASY 2-wire system is designed to be quick to install, simple to operate, and easy to maintain. Ideal for single residential homes or apartment blocks with up to 128 internal monitors, 2EASY is a reliable home security solution.

Key Features

Slim 7" white TFT-digital monitor
Touch screen technology
2-wire non polarised connection
Built-in picture/video memory, provision for an SD card

Specifications

Wiring: 2 wires, non-polarity
Monitor Screen: 7 Inch digital colour TFT
Video Signal: 1Vp-p, 75Ω, CCIR standard
Display Resolutions: 800*3 (R, G, B) x 480 pixels
Power Supply: 24 Vdc
Power Supply for indoor monitor: 20 to 28Vdc
Dimensions: 131 x 225 x 18mm

Datasheet

Wiring example

CDVI 2Easy multiple units wiring diagram

2 Doors to 4 monitors using 2 core cables

Diagram shows 2 X CDV91-SF connected to CDV-DBC4A connected to CDV-PC6 output to CDV-DBC4A with 4 X CDV47 monitors

Other combinations can be used to achieve any configuration required up to 4 entrances maximum, you can combine different monitors and even use audio only for lesser used locations, i.e. in the cellar.

Product Attributes

Catalogue No

CDV-47W

Brand

CDVI
